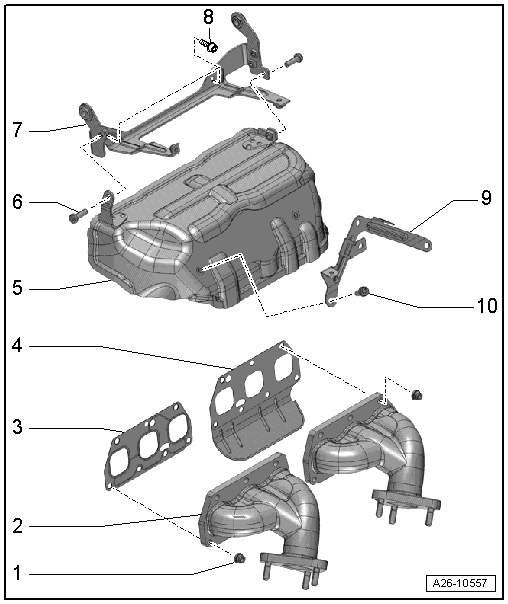

Exhaust Manifold Assembly Overview
WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- Replace
- 23 Nm
- Exhaust Manifold
- Removal and installation, refer to EXHAUST MANIFOLD
- Gasket
- Replace
- Gasket
- With heat shield
- Replace
- Heat Shield
- Bolt
- 10 Nm
- Bracket
- Depending on the version, riveted with a heat shield
- Bolt
- 20 Nm
- Bracket
- Bolt
- 10 Nm
