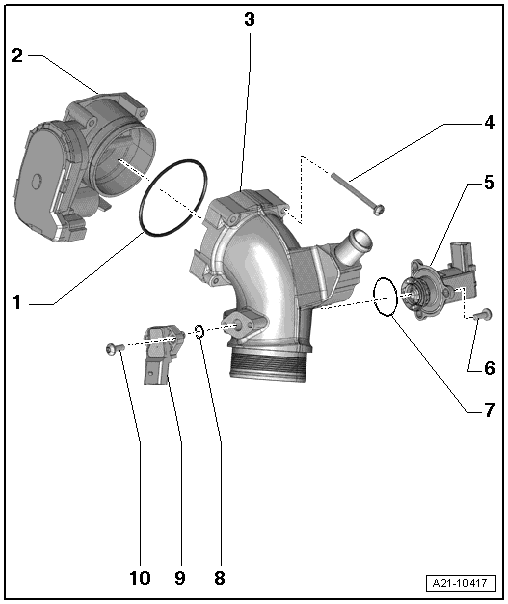

Part 3
- O-ring
- Replace
- Throttle Valve Control Module -J338-
- Removing and installing, refer to Removal and Installation
- Intake Tube
- Removing and installing, refer to Removal and Installation
- Bolt
- Tightening specification, refer to Specifications
- Turbocharger Recirculating Valve -N249-
- Removing and installing, refer to Turbocharger Recirculating Valve -N249-
- Bolt
- 9 Nm
- O-ring
- Replace
- O-ring
- Replace
- Charge Air Pressure Sensor -G31- /Intake Air Temperature Sensor 2 -G299-
- Removing and installing, refer to Charge Air Pressure Sensor -G31- / AND Intake Air Temperature (IAT) Sensor 2 -G299-
- Bolt
- 9 Nm
