Charge Air Pressure Sensor -G31- / And Intake Air Temperature (IAT) Sensor 2 -G299-

Removing

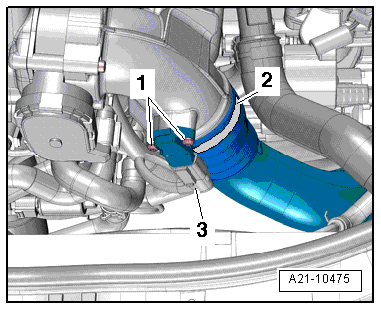

Fig 1: Identifying Charge Air Pressure Sensor -G31- / And Intake Air Temperature (IAT) Sensor 2 -G299-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.

-- Remove the bolts -1-, then remove the charge air pressure sensor / IAT sensor 2.

NOTE:

Ignore -2-.

Installing

Install in reverse order, paying attention to the following:

NOTE:

Replace the O-ring.
