Backrest Frame

Removing

-- Remove the backrest. Refer to BACKREST .

-- Remove center bearing cover cap. Refer to CENTER BEARING COVER CAP .

-- Remove trim. Refer to LEFT OR RIGHT TRIM .

Vehicles with Top Tether

-- Remove top tether. Refer to TOP TETHER CHILD SEAT ANCHORAGE .

-- Remove cover with upholstery. Refer to BACKREST COVER AND UPHOLSTERY .

Procedure for All Vehicles

-- Remove release. Refer to LEFT OR RIGHT RELEASE .

-- Remove filler pieces. Refer to OUTER LEFT OR RIGHT SPACER .

-- Remove the bolts -3-.

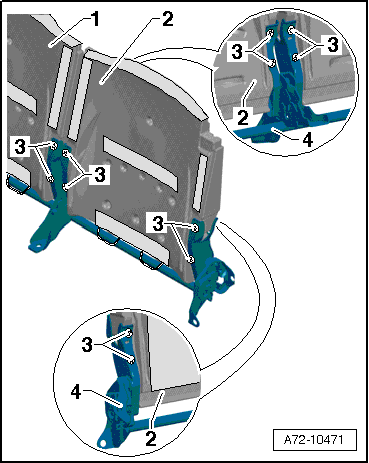

Fig 1: Identifying Backrest Shell

Courtesy of AUDI OF AMERICA, LLC

-- Remove left backrest shell -2- and right backrest shell -1- up out of backrest frame guides -4-.

Installation

Install in reverse order of removal.
