Outer Left Or Right Spacer

NOTE:

Removal and installation of the left outer filler piece is described for a left 1/2 backrest. Removal and installation of the right outer filler piece is the same.

Removing

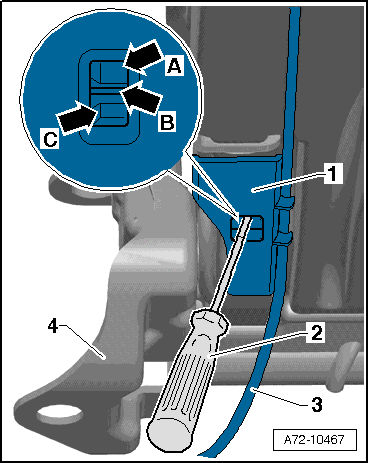

Fig 1: Identifying Outer Left Or Right Spacer, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Unclip filler piece -1- at anchor -4- using a screwdriver -2-.

-- Insert screwdriver -2- in upper opening -arrow A- and press first retaining tab in direction of center bar -arrow B-.

-- Then insert screwdriver -2- in lower opening -arrow C- and press second retaining tab in direction of center bar -arrow B-.

-- Remove filler piece -1- from release cable -3-.

Installing

Install in reverse order of removal. Note the following:

-- Make sure the filler piece is engaged correctly with anchor.
