Left Or Right Trim

Special tools and workshop equipment required

Trim removal wedge 3409

Fig 1: Identifying Trim Removal Wedge 3409
Courtesy of AUDI OF AMERICA, LLC

NOTE:

Removal and installation of the left trim is described for a left 1/2 backrest. Removal and installation of the right trim is the same.

Removing

Fig 2: Identifying Release Button Trim, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Unclip right rear trim -1- starting at the bottom with Trim Removal Wedge3409.

-- Press release button -2- forward (in direction of travel) as far as stop and hold in this position.

-- Pry trim -1- from release with Trim Removal Wedge3409.

-- Remove trim -1- toward rear.

Installation

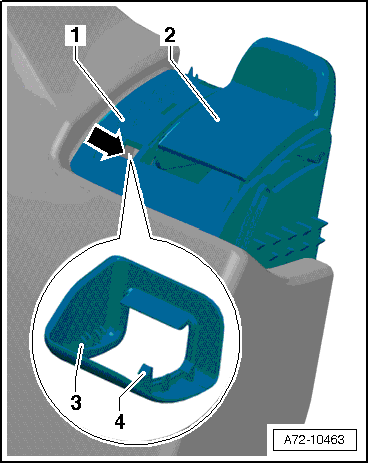

Fig 3: Identifying Release Button Trim, Installing

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- First engage retaining tab -4- on trim -3- in opening -arrow- on release -1-.

-- Press button -2- on release -1- forward (in direction of travel) as far as stop and hold in this position.

-- Press trim down and engage with release.

-- Make sure the all retaining tabs are engaged.

-- Make sure the opening on cover is covered correctly and cover does not have any wrinkles in this area.
