Seat Adjustment Switches, V288/V243/V244/V245/V246/V45/V46 Assembly Overview

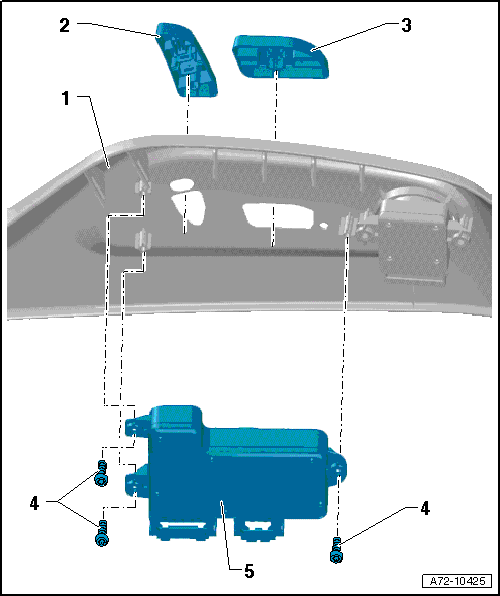

Fig 1: Seat Adjustment Switches, V288/V243/V244/V245/V246/V45/V46 Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Sill-side trim
   • Removing and Installing, refer to SILL SIDE TRIM
2. Backrest adjustment actuator SEAT AND BACKREST ADJUSTMENT ACTUATOR ASSEMBLY OVERVIEW
   • Removing and Installing, refer to BACKREST ADJUSTMENT ACTUATOR
   • Clipped onto switch
3. Seat fore and aft, inclination and height adjustment actuator SEAT AND BACKREST ADJUSTMENT ACTUATOR ASSEMBLY OVERVIEW
   • Removing and Installing, refer to SEAT ADJUSTMENT ACTUATOR
   • Clipped onto switch
4. Bolt
   • 0.5 Nm
   • Quantity: 3
5. Switch
   • Driver Seat Fore/Aft Switch -E363- or -E64-
   • Driver Seat Fore/Aft Switch -E222- or -E334-
   • Driver Seat Fore/Aft Switch -E364- or -E365-
   • Driver Backrest Adjustment Switch -E96- or -E98-
   • Removing and Installing, refer to SEAT FORWARD/BACK, ANGLE, HEIGHT AND BACKREST ADJUSTMENT SWITCHES V288/V243/V244/V245/V246/V45/V46
   • are installed in one housing and cannot be replaced individually
     • Connector connecting direction from below
   • On a power front seat with passenger occupant detection system (country-specific), the seat adjustment switches are rotated 180° when installed
     • Connector connecting direction from above
