Seat Forward/Back, Angle, Height And Backrest Adjustment Switches V288/V243/V244/V245/V246/V45/V46

Removing

-- Remove sill side trim -3-. Refer to SILL SIDE TRIM .

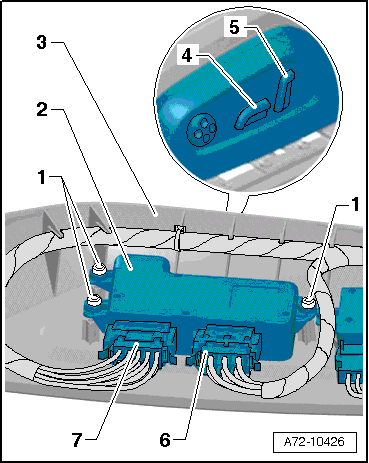

Fig 1: Identifying Seat Forward/Back, Angle, Height And Backrest Adjustment Switches V288/V243/V244/V245/V246/V45/V46 Components

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect connectors -6- and -7-.

-- Remove seat and backrest adjustment actuators -4- and -5-. Refer to SEAT AND BACKREST ADJUSTMENT ACTUATOR ASSEMBLY OVERVIEW .

-- Remove bolts -1- (quantity: 3).

-- Remove seat fore and aft, inclination, height and backrest adjustment switch -2-.

Installation

Install in reverse order of removal. Note the following:

-- Route wires as close to couplings -6- and -7- as possible.
