Entry Assistance Bracket, Coupe Only
The entry assistance bracket can be removed and installed with the front seat installed.
Removing
-- Remove the entry assistance handle: through 10.06 refer to TRIM WITH ENTRY ASSISTANCE HANDLE, COUPE ONLY THROUGH 10.06 , from 11.06 refer to TRIM WITH ENTRY ASSISTANCE HANDLE, COUPE ONLY FROM 11.06 .

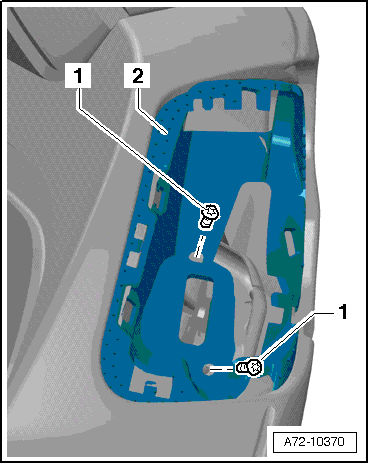

-- Remove bolts -1- (quantity: 2).
-- Remove the entry assistance bracket -2-.
The surrounding area was not shown in the illustration for clarity purposes.
Installation
Install in reverse order of removal. Note the following:
-- Carefully slide entry assistance bracket under the opening in the cover. Do not damage cover when doing so.
-- Install the trim and entry assistance handle. Refer to TRIM WITH ENTRY ASSISTANCE HANDLE, COUPE ONLY THROUGH 10.06 .
