Trim With Entry Assistance Handle, Coupe Only From 11.06

Special tools and workshop equipment required

• Pry lever 80 - 200
  Fig 1: Identifying Pry Lever 80-200

  Courtesy of AUDI OF AMERICA, LLC
• Wedges T10383
  Fig 2: Identifying Wedges T10383

  Courtesy of AUDI OF AMERICA, LLC

Removing

Fig 3: Identifying Trim With Entry Assistance Handle, Coupe Only From 11.06, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Carefully loosen the trim -1- at the top -arrows- with a trim removal wedge T10383.

-- To prevent indents in the trim, cover the trim with reinforced tape -2- as illustrated.

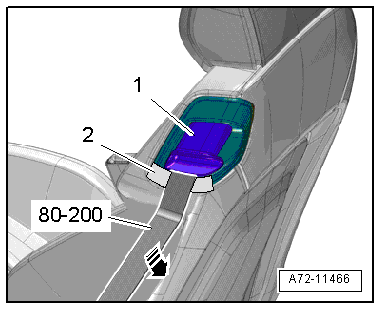

Fig 4: Identifying Entry Assistance Handle, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Remove the handle -1- and the trim using the pry lever80 - 200 -arrow-.

Installation

Install in reverse order of removal. Note the following:

-- Install the handle -1- and the trim until they click into place.

-- Check function of the entry assistance handle.
