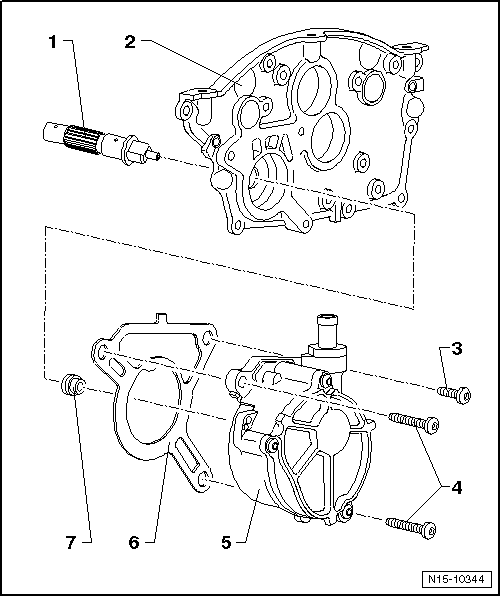

Mechanical Vacuum Pump Overview
WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Input Shaft
- For mechanical vacuum pump.
- Timing Chain Cover Upper Section
- Removing and Installing, refer to TIMING CHAIN GUARD UPPER SECTION, REMOVING AND INSTALLING .
- Bolt
- 10 Nm
- Short
- Bolt
- 10 Nm
- Long
- Mechanical Vacuum Pump
- For vehicles from approximately 11.2006.
- Removing and Installing, refer to MECHANICAL VACUUM PUMP, REMOVING AND INSTALLING .
- Seal
- Replace
- Seal
- Installed position, refer to MECHANICAL VACUUM PUMP, REMOVING AND INSTALLING .
