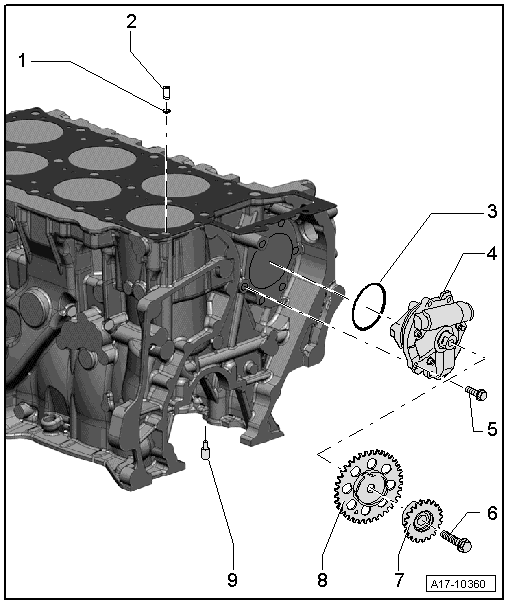

Oil Pump Overview
WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- O-Ring
- Replace
- Coat with oil before Installation.
- Oil Check Valve
- Removing and Installing, refer to OIL CHECK VALVE, REMOVING AND INSTALLING .
- O-Ring
- Replace
- Coat with oil before Installation.
- Oil Pump
- Removing and Installing, refer to OIL PUMP, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Insert using locking compound.
- Bolt
- Use Counterhold - Vibration Damper T10069 on vibration damper to loosen and tighten.
- Replace
- Tightening specification, refer to CAMSHAFT TIMING CHAINS OVERVIEW , -item 14- Bolt.
- Camshaft Timing Chain Sprocket
- Removing and Installing, refer to TIMING MECHANISM DRIVE CHAIN, REMOVING AND INSTALLING .
- Timing Mechanism Drive Chain Sprocket
- Removing and Installing, refer to TIMING MECHANISM DRIVE CHAIN, REMOVING AND INSTALLING .
- Oil Spray Jet
- Removing and Installing, refer to Fig 2.
NOTE:
The oil spray jets are installed in crankshaft bearings 2 to 7.
Removal:
-- Press oil spray jet out toward crankshaft bearing with 4 mm diameter drift.
Installation:
-- Press oil spray jet in by hand with 6 mm diameter drift -arrow-.
