Secondary Air Injection Pump: Removing
WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove right headlamp. Refer to HEADLAMP, REMOVING AND INSTALLING .
-- Remove right turn signal housing. Refer to SIDE MARKER LAMP AND TURN SIGNAL HOUSING, REMOVING AND INSTALLING .

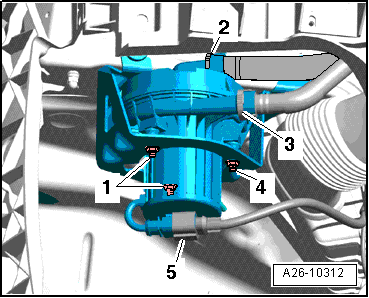

-- Separate the electrical connector -5-.
-- Remove hose -3- to secondary air injection combi-valve and hose -2- to upper section of air filter housing from Secondary Air Injection (AIR) pump.
-- Remove nuts -1- and -4- and remove AIR pump upward from bracket.
-- Guide AIR pump forward out of turn signal housing bumper cut-out.
