Side Marker Lamp And Turn Signal Housing, Removing And Installing

Removal

NOTE:

When Installation, reinstall all cable ties that were loosened or cut during removal in the same locations.

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

Vehicles without S Line Equipment:

Fig 1: Air Intake Grille -1- In Upper Part Of Bumper Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove air intake grille -1- in upper part of bumper cover -arrow-.

Vehicles with S Line Equipment:

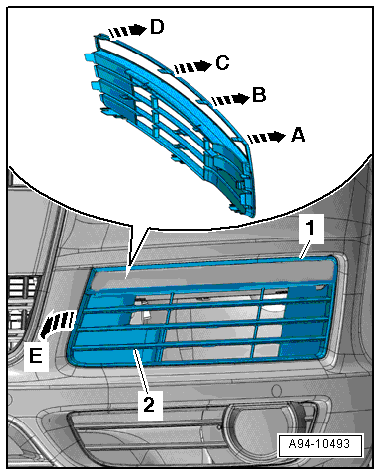

-- Remove the brace -1- for the air inlet grille from the bumper cover in the sequence shown in direction of -arrows A through D-.

-- Disengage the air inlet grille -2- at the spot identified with in direction of -arrow E-, move it the side and remove it from the upper part of the bumper cover.

Fig 2: Identifying Air Inlet Grille, Removal/Installation

Courtesy of AUDI OF AMERICA, LLC

All Vehicles:

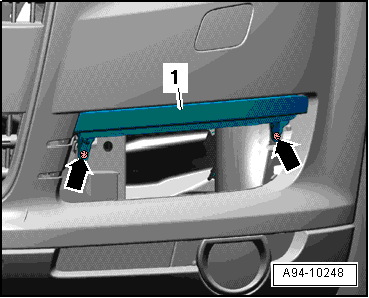

-- Remove screws -arrows- and remove housing -1- from bumper cover.

Fig 3: Identifying Housing And Screws

Courtesy of AUDI OF AMERICA, LLC

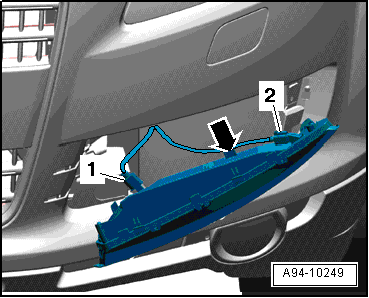

-- Disconnect electrical connectors -1- and -2-.

-- Cut through cable ties -arrow-.

Fig 4: Disconnecting Electrical Connectors -1- And -2-

Courtesy of AUDI OF AMERICA, LLC

Installation

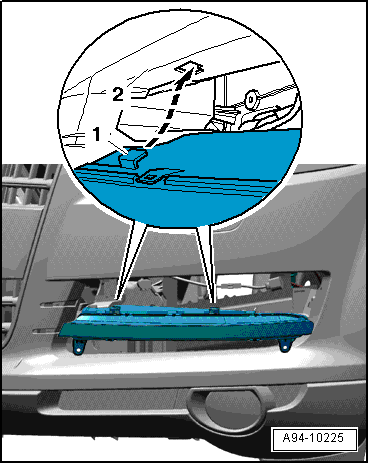

Fig 5: Identifying Guides -1- Engaged In Mounts On Bumper Cover -2-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

When Installation, install cable ties at same location.

Install in reverse order of removal. Note the following:

-- Insert housing in bumper.

Guides -1- must engage in mounts on bumper cover -2- in direction of -arrow-.

Tightening Specifications

Component	Nm
Housing to bumper cover	2, 5
