Headlamp, Removing And Installing

Removal

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

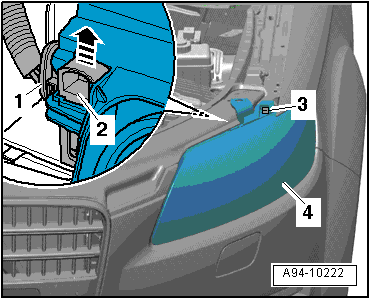

-- Disconnect electrical connector -1-.

-- Release retaining clip -2- in direction of -arrow-.

-- Press retaining clip -3- down, and at the same time, remove headlamp housing -4- from mount.

Refer to HEADLAMP, REMOVING AND INSTALLING .

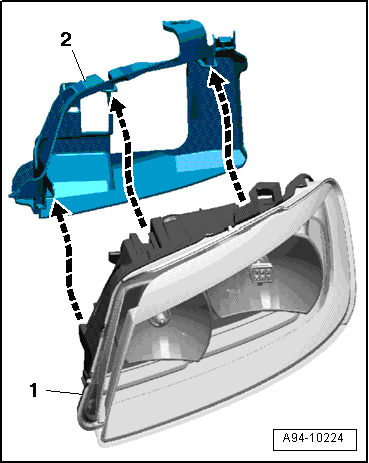

-- Make sure the guides on the headlamp housing engage into the guides on the mount -arrows- when Installation the headlamp -1- into the mount -2-.

• The headlamp housing must slide into the mount gently without using force.

-- Slide headlamp into mount until it engages audibly.

-- Secure headlamp with retaining clip.

-- Adjust headlamps after Installation, refer to HEADLAMPS, ADJUSTING .
