Transmission, Removing

WARNING: This page is about a different car, the 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Pry Lever80-200
Engine Support Bridge10-222A
Engine Support - Bracket w/Spindle and hook10-222A/10
Engine Support Bridge - Engine Support 1910-222A/19
Bracket - Multiple Use30-211A
Transmission Support3282
Transmission Support - Mounting Plate 493282/49
Engine/Gearbox JackVAG1383A
Engine Bung SetVAS6122
Crankshaft SocketT40058
Engine Support - Basic SetT40091
Engine Support - Supplement KitT40093A

Procedure

NOTE:

Refer to GENERAL REPAIR INFORMATION .

Refer to TRANSMISSION, CLEAN WORKING CONDITIONS .

-- Remove the left and right front wheels.

-- Remove the particulate filter. Refer to Exhaust System, Emission Controls .

Fig 1: Identifying Left Main Catalytic Converter Bracket Bolts And Nuts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the primary catalytic converter. Refer to Exhaust System, Emission Controls .

Fig 2: Identifying Front Exhaust Pipe With Catalytic Converter Nuts

Courtesy of AUDI OF AMERICA, LLC

Vehicles without A SCR Catalytic Converter

Fig 3: Removing Coolant Lines

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left rear coolant Lines. Refer to COOLANT PIPES OVERVIEW .

Vehicles with A SCR Catalytic Converter

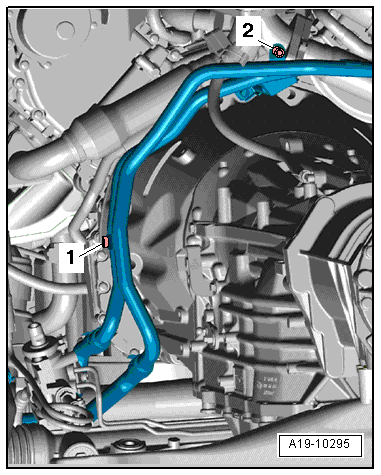

Fig 4: Identifying Bolts -1 And 3- For Coolant Pipe

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left rear coolant pipe from the transmission. Refer to LEFT REAR COOLANT PIPE ON TRANSMISSION, REMOVING AND INSTALLING .

All Vehicles

Fig 5: Identifying Charge Air Hose Clamps -Arrows- And Hose

Courtesy of AUDI OF AMERICA, LLC

-- Remove the air guide hose -arrows-.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

Fig 6: Identifying Air Filter Housing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left front wheel housing liner. Refer to Wheel Housing Liners .

Fig 7: Identifying Front Wheel Housing Liners

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts and bolts -arrows- from the refrigerant line clamps.

Fig 8: Identifying Coolant Line Retaining Clamp Nuts And Bolts -Arrows-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

When connections are loosened, coolant lines may be moved aside slightly to position the Supports10-222A/19 on the longitudinal members.

-- Mount the Engine Support Bridge10-222A with the ConnectionsT40091/3 and 2 spindles on the fender bolting edge.

Fig 9: Identifying Engine Support Bridge 10-222A And Movable Joints T40091/3

Courtesy of AUDI OF AMERICA, LLC

Spindles are at front.

-- Engage hooks on both spindles at both engine rear lifting eyes.

-- Install additional Engine Support Bridge10-222A parts as illustrated. Position Supports10-222A/19 on notches in longmembers.

Fig 10: Identifying Rail With Holes T40091/2, Mounts T40093/5 And Movable Joints T40093/4

Courtesy of AUDI OF AMERICA, LLC

-- Slide SupportT40091/2 with SlideT40093/5 into both ConnectorsT40093/4.

CAUTION:

Secure SupportT40091/2 with ConnectorT40093/4 pins and splints.

-- Engage hooks on short Spindle10-222A/10 at front right engine lifting eye.

-- Lightly tension engine by tightening the 3 spindles evenly.

CAUTION:

Only tension engine, do not lift.

-- Remove rear driveshaft. Refer to REAR FINAL DRIVE, REMOVING AND INSTALLING .

Fig 11: Identifying Bolts -Arrows- At Transfer Case/Rear Driveshaft Connection

Courtesy of AUDI OF AMERICA, LLC

-- Remove transfer case. Refer to TRANSFER CASE OVERVIEW .

Fig 12: Identifying Transfer Case Bolts -Arrows 1 And 2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 through 4- and remove the selector lever cable heat shield.

Fig 13: Identifying Selector Lever Cable Heat Shield - Tightening Specification

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ball head -2- on the selector lever cable from the selector lever using the Pry Lever80-200.

Fig 14: Identifying Locking Washer & Selector Lever Cable

Courtesy of AUDI OF AMERICA, LLC

-- Remove the clip -1- and the selector lever cable from the transmission.

NOTE:

Do not bend or kink the selector lever cable.

-- Remove the bolts -2- and remove the selector lever cable bracket.

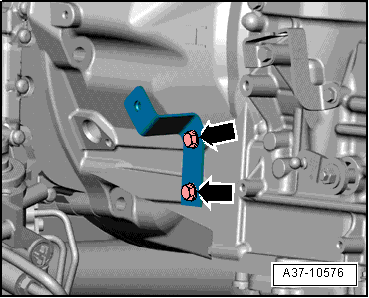

Fig 15: Identifying Bolts -2- And Selector Cable Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the strap for the primary catalytic converter.

Fig 16: Identifying Bolts -Arrows- And Strap For Primary Catalytic Converter

Courtesy of AUDI OF AMERICA, LLC

-- Remove the connector -arrow- for the Engine Speed Sensor -G28- from the bracket and disconnect it.

Fig 17: Identifying Connector -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -1 through 3-.

Fig 18: Connect Connectors -1 Through 3-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Place a cloth under separation point to collect to escaping ATF.

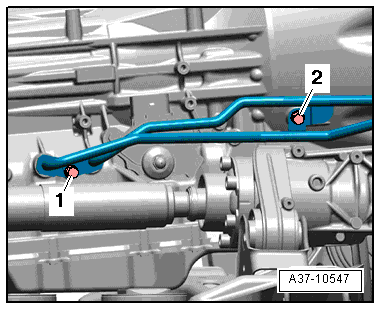

Fig 19: Identifying ATF Transmission Line Bolt -2-

Courtesy of AUDI OF AMERICA, LLC

Refer to TRANSMISSION, CLEAN WORKING CONDITIONS .

-- Remove the bolts -1 and 2- and the ATF Lines from the transmission.

-- Seal any open lines and connections with a clean plug from the Engine Bung SetVAS6122.

-- Remove the generator. Refer to GENERATOR, REMOVING AND INSTALLING .

-- Remove the starter. Refer to STARTER, REMOVING AND INSTALLING .

Fig 20: Identifying Nut -1- And Connector -2-

Courtesy of AUDI OF AMERICA, LLC

-- Insert the adapter Crankshaft SocketT40058 guide pins as follows:

Fig 21: Guide Pin And Adapter T40058

Courtesy of AUDI OF AMERICA, LLC

The large diameter -arrow 1- faces the engine.
The small diameter -arrow 2- faces the adapter.

-- Counter hold the crankshaft with the Crankshaft SocketT40058 and loosen the torque converter bolts.

Fig 22: Identifying TDC With Special Tool Adapter T140058

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Danger of camshaft timing chain jumping off.

Turn the crankshaft only in the direction of engine rotation -arrow-.

-- If equipped, remove the cover -arrow-.

Fig 23: Identifying Cover -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the 6 torque converter bolts -arrow- in the opening for the started; to do this, turn the crankshaft 120° in direction of engine rotation.

Fig 24: Identifying Torque Converter Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the engine/transmission connecting bolts -3 through 6- and -8 through 10-.

Fig 25: Bolt Removal Sequence

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Screw -7- remains installed hand-tight.

-- Mount the Transmission Support3282 on the Engine/Gearbox JackVAG1383A.

Fig 26: Identifying 3282 onto V.A.G 1383 A

Courtesy of AUDI OF AMERICA, LLC

-- Lay the Transmission Support - Mounting Plate 493282/49 on the Transmission Support3282 as illustrated.

-- Align the arms on the transmission support with the holes in the adjusting plate.

-- Attach the support elements on the adjusting plate as illustrated.

-- Guide Engine/Gearbox JackVAG1383A with Transmission Support3282 under transmission.

NOTE:

The arrow symbol on the adjustment plate points in the direction of travel.

-- Align the adjusting plate so that it is parallel to the transmission.

-- Secure mount to threaded hole at back of transmission with an M10 x 20 bolt -arrow-.

-- Position side mounts at left and right in oil pan notch as shown in illustration.

Fig 27: Positioning Side Mounts On Left And Right In Oil Pan Notch

Courtesy of AUDI OF AMERICA, LLC

-- Lift the transmission slightly.

-- Remove last connecting bolt between engine and transmission.

-- Press transmission off of engine while pressing torque converter off of drive plate in direction of -arrow-.

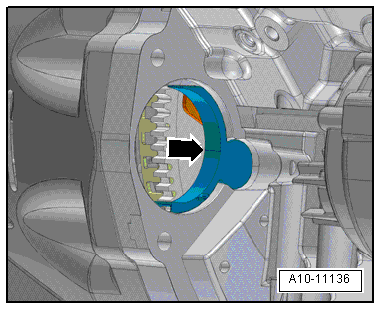

Fig 28: Prying Torque Converter Off Drive Plate -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Carefully lower transmission using Engine/Gearbox JackVAG1383A.

CAUTION:

A torque converter that slips out can destroy the ATF pump driver if the Bracket - Multiple Use30-211A is mounted.

When converter is inserted correctly, distance -a- between contact surfaces on threaded holes and on converter and torque converter bell housing contact surfaces is at least 19 mm.

Fig 29: Measuring Torque Converter

Courtesy of AUDI OF AMERICA, LLC

-- Use the Bracket - Multiple Use30 - 211A to secure the torque converter inside the transmission from falling out.

Fig 30: Identifying Bracket -30-211A- Attached To Secure Torque Converter

Courtesy of AUDI OF AMERICA, LLC
