Transfer Case Overview

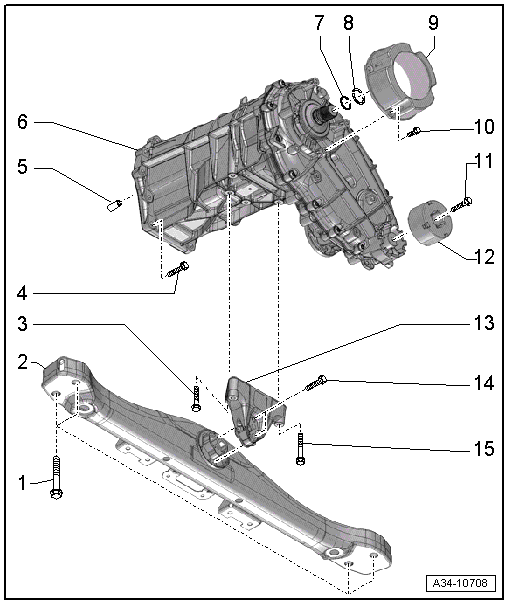

Fig 1: Identifying Transfer Case Overview

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Tightening specification, refer to -Item 7- TRANSMISSION CARRIER AND CONSOLE OVERVIEW.
Transmission Carrier
- Removing and Installing. Refer to TRANSMISSION CARRIER AND CONSOLE, REMOVING AND INSTALLING .
Bolt
- Tightening specification, refer to -Item 6- TRANSMISSION CARRIER AND CONSOLE OVERVIEW.
Bolt
- 20 Nm + 90°
- Quantity: 12
- Replace
Alignment Sleeve
- Quantity: 2
Transfer Case
- Removing and Installing. Refer to TRANSFER CASE, REMOVING AND INSTALLING .
- Replace shaft seals. Refer to TRANSFER CASE SHAFT SEALS .
O-ring
- Replace
- Diameter 28 mm
- Color: green
Locking Ring
- Replace
- Diameter 28 mm
- Color: silver
Balance Weight
- Installed depending on the version.
Bolt
- 32 Nm
- Self-locking
- Replace
Bolt
- 50 Nm
- Self-locking
- Replace
Balance Weight
- Installed depending on the version.
Bracket
- Removing and Installing. Refer to TRANSMISSION CARRIER AND CONSOLE, REMOVING AND INSTALLING .
Bolt
- Tightening specification, refer to -Item 4- TRANSMISSION CARRIER AND CONSOLE OVERVIEW.
Bolt
- Tightening specification, refer to -Item 5- TRANSMISSION CARRIER AND CONSOLE OVERVIEW.
