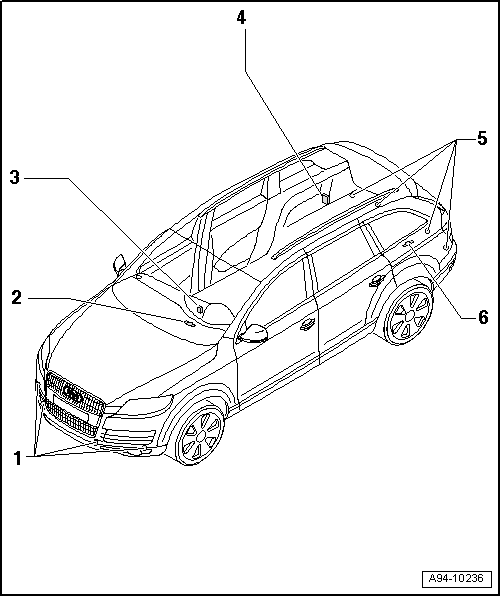

Parking Aid Overview
- Parking Aid Sensor
- Inside the front bumper.
- Only with 8-channel parking aid.
- Removing and Installing, refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
- Front Parking Aid Warning Buzzer -H22-
- Only with 8-channel parking aid.
- On center instrument panel relay and fuse carrier bracket.
- Removing and Installing, refer to Front Parking Aid Warning Buzzer -H22-, REMOVING AND INSTALLING, 8-CHANNEL PARKING AID .
- Parking Aid Button -E266-
- Only with 8-channel parking aid.
- With Parking Aid Switch Illumination Bulb -L117-.
- With integrated Parking Aid Indicator Lamp -K136-.
- Component location, refer to Fig 2.
- Parking Aid Control Module -J446-
- In right rear luggage compartment at wheel house.
- Removing and Installing, refer to Parking Aid Control Module -J446-, REMOVING AND INSTALLING .
- Parking Aid Sensor
- Inside the rear bumper.
- Removing and Installing, refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
- Rear Parking Aid Warning Buzzer -H15-
- Behind luggage compartment left side trim.
- Removing and Installing, refer to Rear Parking Aid Warning Buzzer -H15-, REMOVING AND INSTALLING .

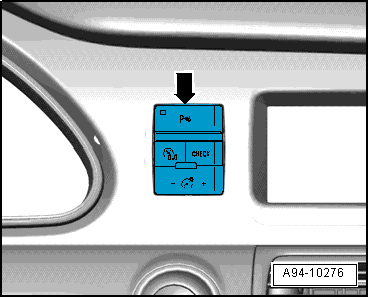

- Inside the switch unit in the center console -arrow-.
- Removing and Installing, refer to INSTRUMENT CLUSTER BUTTON UNIT, REMOVING AND INSTALLING .
