Front Parking Aid Warning Buzzer -H22-, REMOVING AND INSTALLING, 8-CHANNEL PARKING AID

Removal

-- Remove driver's side upper instrument panel cover, refer to INSTRUMENT PANEL COVERS ON DRIVER SIDE OVERVIEW .

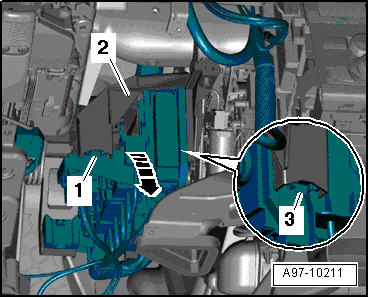

-- Release retaining clips -1- and -3- and pivot center instrument panel relay and fuse panel out of retaining frame in direction of -arrow-.

Fig 1: Pivoting Center Instrument Panel Relay And Fuse Panel -2- Down Out Of Retaining Frame

Courtesy of AUDI OF AMERICA, LLC

-- Remove nut -4-.

-- Release retainer -3- and disengage center instrument panel relay and fuse carrier bracket at threaded pins.

-- Slide center instrument panel relay and fuse panel bracket up slightly to disengage retaining pins -1- on central tube.

-- To disengage attachment -2-, pull center instrument panel relay and fuse panel out of body toward passenger compartment.

-- Remove center instrument panel relay and fuse panel toward passenger compartment.

Fig 2: Release Retainer -3- And Disengage The Center Instrument Panel Relay And Fuse Carrier

Courtesy of AUDI OF AMERICA, LLC

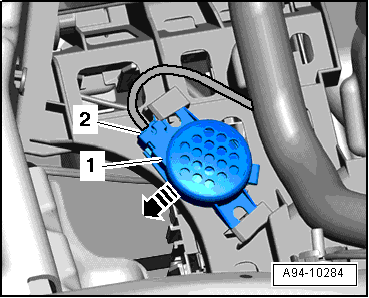

-- Unclip Front Parking Aid Warning Buzzer -H22- item -1- in direction of -arrow- out of center instrument panel relay and fuse panel.

-- Disconnect electrical connector -2-.

Fig 3: Identifying Parking Aid Warning Buzzer And Connector

Courtesy of AUDI OF AMERICA, LLC

Installation

Install in reverse order of removal. Note the following:

-- Install driver's side upper instrument panel cover, refer to INSTRUMENT PANEL COVERS ON DRIVER SIDE OVERVIEW .

Tightening Specifications

Component	Nm
Center instrument panel relay and fuse panel to central tube	3
