Charge Air Cooler Assembly Overview: Notes
NOTE:
Before testing or performing a repair, check all air guide pipes and hoses and all vacuum lines for leaks and secure seating.
The hose connections as well as the air guide pipes and hoses must be free of oil and grease before installing.
Secure all hose connections with hose clamps appropriate for the model.
In order to be able to securely mount the air guide hoses on their connectors, spray the screws on the previously used clamps with a rust remover.

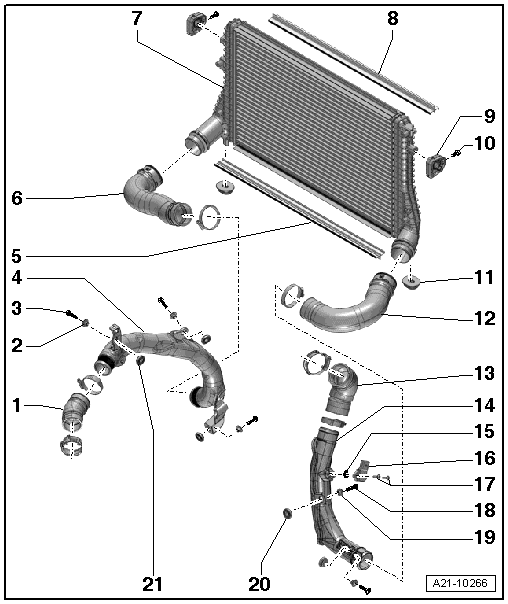

- Air Guide Hose
- Sleeve
- Bolt
- 9 Nm
- Left Air Guide Pipe
- Gasket
- Air Guide Hose
- Removing CHARGE AIR COOLER ASSEMBLY OVERVIEW
- Installing CHARGE AIR COOLER ASSEMBLY OVERVIEW
- Charge Air Cooler
- Removing and installing , refer to CHARGE AIR COOLER
- Gasket
- Mount
- Bolt
- 5 Nm
- Mount
- Air Guide Hose
- Removing CHARGE AIR COOLER ASSEMBLY OVERVIEW
- Installing CHARGE AIR COOLER ASSEMBLY OVERVIEW
- Air Guide Hose
- Air Guide Pipe
- O-ring
- Replace
- Charge Air Pressure Sensor -G31- /Intake Air Temperature (IAT) Sensor -G42-
- Removing and installing , refer to CHARGE AIR PRESSURE SENSOR AND INTAKE AIR TEMPERATURE SENSOR
- Bolt
- 5 Nm
- Bolt
- 9 Nm
- Sleeve
- Grommet
- Replace if damaged
- Grommet
- Replace if damaged
