Charge Air Pressure Sensor And Intake Air Temperature Sensor

Removing

-- Remove the noise insulation -1-. Refer to Removal and Installation .

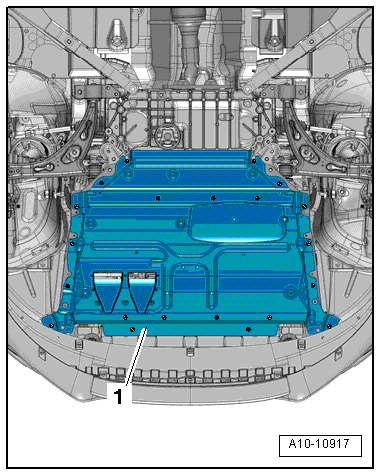

Fig 1: Identifying Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamp -2-, lift the retaining clamp -1- and remove the air guide hose.

Fig 2: Identifying Clamp -2- And Circlip -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -arrows-.

Fig 3: Identifying Charge Air Pipe Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Free up the coolant hose -3-.

-- Loosen the hose clamp -2-.

-- Disconnect the connector -1- on the charge air pressure sensor -G31- and then remove the front air guide pipe.

-- Remove the screws -arrows- and pull the charge air pressure sensor/intake air temperature sensor -G42- off the air guide pipe.

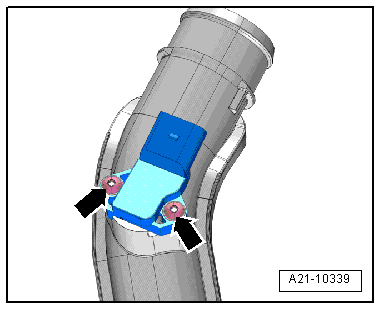

Fig 4: Identifying Charge Air Pressure Sensor/Intake Air Temperature Sensor

Courtesy of AUDI OF AMERICA, LLC

Installing

Installation is in reverse order of removal, note the following:

NOTE:

Replace O-ring.

-- Install the front air guide pipe. Refer to CHARGE AIR COOLER ASSEMBLY OVERVIEW .

-- Install the noise insulation. Refer to Removal and Installation .
