Condenser - Engine Code(S): BPY, CCTA, CDMA & CETA

NOTE:

The radiator and condenser may have small indentations on the fins even when installed correctly. It is not damage. Do not replace the radiator or condenser because of those small indentations.

Condenser is available in different versions, depending on version of vehicle.

NOTE:

The following describes removal and installation on a 2.0L TFSI vehicle. The procedure may be different on other 4 cylinder vehicles.

Removing

-- Switch off ignition.

-- Discharge refrigerant circuit. Refer to Description and Operation (A/C Service Station).

-- Remove fan shroud. Refer to [For engine(s) CETA, CCTA] Removal and Installation or refer to [For engine(s) CDMA] Removal and Installation or refer to [For engine(s) BPY] Removal and Installation .

-- Disconnect refrigerant lines from condenser. Refer to REFRIGERANT LINES, DISCONNECTING AND CONNECTING FROM CONDENSER .

-- Remove the front bumper cover. Refer to Removal and Installation .

-- Remove left and right air guide hose to charge air cooler by loosening spring clips and hose clamps. Refer to [For engine(s) CETA, CCTA] Removal and Installation or refer to [For engine(s) CDMA] Removal and Installation or refer to [For engine(s) BPY] Removal and Installation .

-- Loosen clamp -2-

Fig 1: Identifying Intake Tube, Bolt, Nut And Electrical Connector

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect electrical connector -4-.

-- Remove nut -3- and bolt -1-.

-- Remove intake downward.

-- Remove bolts -arrows- by releasing air ducts at left and right and tipping in direction of head lamps.

Fig 2: Identifying Air Cooler Lower Mounting Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Tip top edge of charge air cooler back slightly.

-- Disengage charge air cooler from lower mounting points by raising it.

-- Slide charge air cooler in direction of engine.

-- Support charge air cooler from below so that it cannot sink.

NOTE:

Do not bend or stretch lines or hoses as compressor and refrigerant lines/hoses may be damaged.

Fig 3: Identifying Bolts To Condenser

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -arrows-.

-- Remove condenser from charge air cooler.

-- Remove condenser -A- downward.

Installing

Fig 4: Identifying Condenser, Remove/Install Components

Courtesy of AUDI OF AMERICA, LLC

Tightening specification: bolts for securing compressor (to charge air cooler) - 5 Nm.

Installation is done is reverse order, observe the following:

NOTE:

The removed condenser contains refrigerant oil that must be returned to the refrigerant circuit (with the new condenser). Refer to Removal and Installation .

-- Ensure sealing strips -arrows- have adhered correctly to condenser -A-.

-- Tighten bolts on condenser in -A, B- sequence.

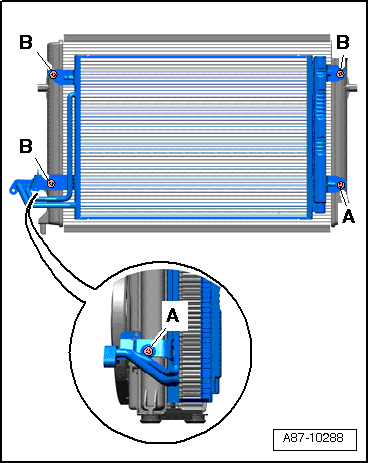

Fig 5: Tightening Bolts On Condenser In -A, B- Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Attach refrigerant lines. Refer to REFRIGERANT LINES, DISCONNECTING AND CONNECTING FROM CONDENSER .

-- Install lower intake and charge air hoses. Refer to [For engine(s) CETA, CCTA] Removal and Installation or refer to [For engine(s) CDMA] Removal and Installation or refer to [For engine(s) BPY] Removal and Installation .

-- Install fan shroud. Refer to [For engine(s) CETA, CCTA] Removal and Installation or refer to [For engine(s) CDMA] Removal and Installation or refer to [For engine(s) BPY] Removal and Installation .

-- Install front bumper cover. Refer to Removal and Installation .

-- Evacuate and fill refrigerant circuit. Refer to Description and Operation (A/C Service Station).

-- Install remaining components.

-- Operate the A/C system after filling the refrigerant circuit. Refer to A/C SYSTEM, OPERATING AFTER FILLING REFRIGERANT CIRCUIT .

NOTE:

Note the information regarding operating the A/C system after filling. Refer to Description and Operation (A/C Service Station).
