Refrigerant Lines, Disconnecting And Connecting From Condenser

NOTE:

Different versions of the condenser are available depending on the vehicle version.

5 cylinder vehicles have a condenser -A- that has an additional double pipe -C- bolted on to the condenser -A-. The double pipe -C- is supplied with the condenser. If it necessary to loosen the double pipe -C- from the condenser -A- use the same tightening specification for the screws on the connections as for the screws on the refrigerant lines -D- and -E-.

Fig 1: Identifying Refrigerant Lines, Disconnecting And Connecting From Condenser, Remove/Install Components

Courtesy of AUDI OF AMERICA, LLC

Removing

-- Discharge the refrigerant circuit. Refer to Description and Operation (A/C Service Station).

-- Remove center noise insulation. Refer to Removal and Installation .

-- Disconnect the high pressure sensor -G65- connector -A-.

Fig 2: Identifying Bolts, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -C-.

-- Disconnect refrigerant lines -B- and -D- from condenser.

NOTE:

Close all open lines and connections on the condenser with suitable caps (to prevent dirt and moisture from entering the system).

Installing

Installation is the reverse of removal, noting the following:

NOTE:

Coat the O-ring seals lightly with refrigerant oil prior to installation. Refer to REFRIGERANT CIRCUIT O-RINGS .

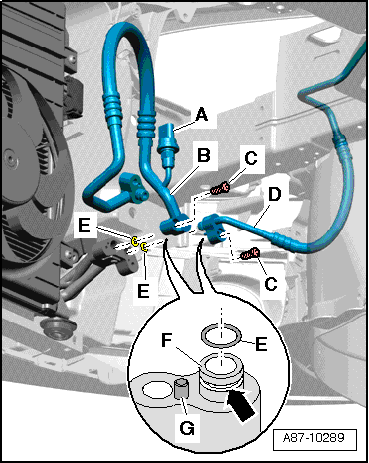

Ensure O-ring seals -E- (different versions) are seated correctly in groove -arrow- on respective refrigerant line.

Following attachment, check routing of refrigerant lines on condenser. They must be inserted in holders provided and not make contact with other components.

-- Replace O-rings -E-. Version.

-- Check fitting pin -G- (not installed at all connections) and connection -F- for damage and proper seating.

-- Tighten bolts -C-.

Tightening specification: Bolts on refrigerant line connection on condenser - 12 Nm.

-- Discharge and fill the refrigerant circuit. Refer to Description and Operation (A/C Service Station).

-- Install remaining components.

-- Operate the A/C system after filling the refrigerant circuit. Refer to A/C SYSTEM, OPERATING AFTER FILLING REFRIGERANT CIRCUIT .

NOTE:

Note the information regarding operating the A/C system after filling. Refer to Description and Operation (A/C Service Station).
