Dual-Mass Flywheel Component Overview

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

For assembly work, secure the engine on the engine and transmission holder. Refer to ENGINE, SECURING TO ENGINE AND TRANSMISSION HOLDER .

NOTE:

Items -4 through 23-, refer to TIMING CHAIN COVERS ASSEMBLY OVERVIEW .

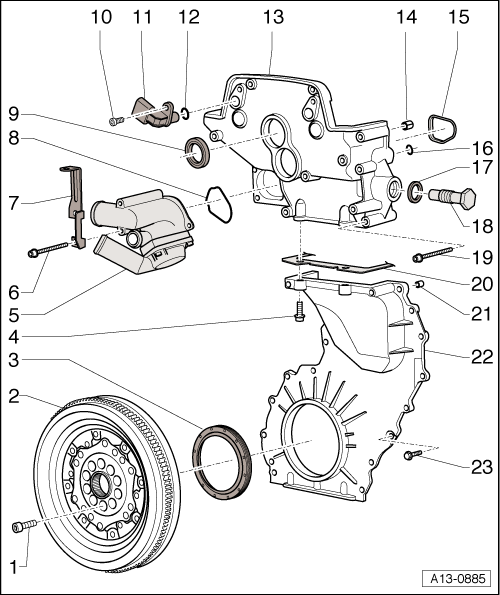

Fig 1: Identifying Timing Chain Covers & Dual Mass Flywheel, Assembly Overview
GWWA13-0885Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • Replace
    • 60 Nm plus an additional 90° (1 /4 ) turn.
  2. Dual Mass Flywheel
  3. Seal
