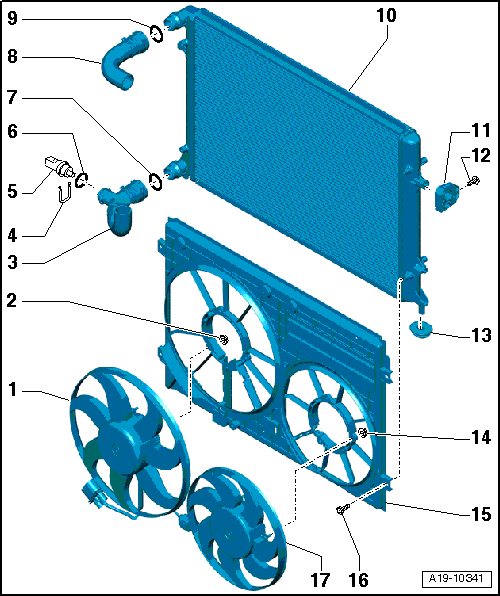

Radiator And Coolant Fan Assembly Overview
WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.
- Coolant Fan -V7-
- Removal and installation, refer to COOLANT FAN AND COOLANT FAN 2
- Nut
- 10 Nm
- Lower Coolant Hose
- To connection for coolant regulator
- Retaining Clip
- Coolant Fan Control (FC) Thermal Switch -F18-
- 35 Nm
- O-ring
- Replace
- O-ring
- Replace if damaged
- Upper Coolant Hose
- To connection sleeve at cylinder head
- O-ring
- Replace if damaged
- Radiator
- Removal and installation, refer to RADIATOR
- After replacing, replace entire amount of coolant
- Bracket
- For radiator
- Bolt
- 5 Nm
- Rubber Bushing
- Nut
- 10 Nm
- Fan Rib
- Removal and installation, refer to FAN SHROUD
- Bolt
- 5 Nm
- Coolant Fan 2 -V177-
- Removal and installation, refer to COOLANT FAN AND COOLANT FAN 2
