From Transmission Build Date 5/25/09

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

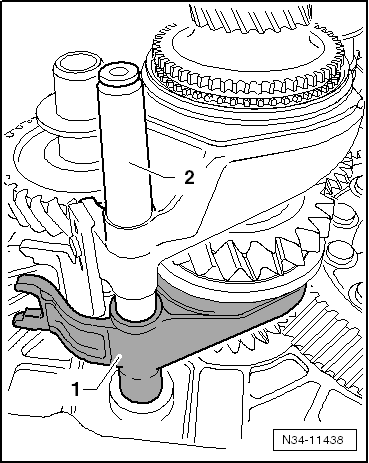

Fig 1: Identifying Reverse Gear Selector Fork -1- Mounted On Selector Shaft With 5th And 6th Gear Selector Fork -2-

Courtesy of AUDI OF AMERICA, LLC

Bearing for reverse gear shift fork:

-- Mount reverse gear shift fork -1- on the selector rod with 5th/6th gear shift fork -2-.

Continuation for all Transmissions

-- Insert differential -1-.

Fig 2: Identifying Differential, Input Shaft & Output Shaft

Courtesy of AUDI OF AMERICA, LLC

NOTE:

A 2nd technician is required for further installation of shafts into clutch housing.

-- As shown in illustration, take output shaft for 1st to 4th gears -3- with selector rods -4- in right hand.

-- Lift differential slightly with the left hand.

-- At the same time, 2nd technician slightly lifts input shaft, output shaft for 5th/6th gears and reverse gear -2- together with reverse shaft.

-- Now, insert the output shaft for 1st to 4th gears in direction of -arrow-.

Places of input shaft, output shafts and final drive gear/differential must engage.

-- Together with a 2nd technician, place the shafts and the differential into their bearing seats.

-- Fasten the 30-211A for the input shaft to the clutch housing.

Fig 3: Identifying Bolt, Bracket 30-211A & Special Tool VW 353

Courtesy of AUDI OF AMERICA, LLC

NOTE:

For the sake of illustration, clutch housing is depicted rotated 180°.

-- Screw in bolt -A- far enough until input shaft rises slightly.

The grooved ball bearing/input shaft only fits in one position in the transmission housing.

There is a flattened area on the grooved ball bearing and the bearing mount.

If flattened areas -A- and -B- are present, do not insert any spacer washers above and below the grooved ball bearing. Refer to GROOVED BALL BEARING CHANGES .

Fig 4: Flattened Areas On Grooved Ball Bearing And Bearing Seat In Transmission Housing, Approximately From Transmission Build Date 21 February 2008
Courtesy of AUDI OF AMERICA, LLC
Flattened areas -A- on the grooved ball bearing and on bearing mount -B- must align in the transmission housing.

-- Mark the flattened areas with color.

-- Place a marking on the upper area of the grooved ball bearing and on the upper area of the transmission housing bearing mount (→ next illustration).

-- Heat the transmission housing using the V.A.G 1416 in the area of the bearing seat for the grooved ball bearing/input shaft to approximately 100 °C (212° F) for approximately 10 minutes.

NOTE:

It is necessary to heat the transmission housing so that the grooved ball bearing is not damaged when the housing is being installed.
Align the marking on the grooved ball bearing -A- with the marking on the transmission housing -B- and mount the transmission housing.

Fig 5: Aligning Mark On Grooved Ball Bearing With Mark On Transmission Housing

Courtesy of AUDI OF AMERICA, LLC

Apply sealing paste AMV 188 200 03 evenly onto the sealing surface of the clutch housing.

-- Install transmission housing and tighten new bolts -A-, -B- and -C- to tightening specification.

Fig 6: Allocation Of Bolts As Replacement Parts

Courtesy of AUDI OF AMERICA, LLC

Allocation of bolts:

A - Bolt with permanent washer

B -Bolt without washer

C -Bolt with permanent washer

-- Install circlip -1- for grooved ball bearing/input shaft.

Fig 7: Identifying Circlip & Special Tool VW 309

Courtesy of AUDI OF AMERICA, LLC

-- Remove 30-211A for input shaft.

-- If selector shaft lock sleeve has been removed, drive it in now as far as stop on tool LOCK SLEEVE DIFFERENTIATION .

-- Turn transmission with opening for selector shaft in assembly stand upward.

Fig 8: Identifying Selector Shaft Inserted Into Lower Bearing And Into Shift Forks

Courtesy of AUDI OF AMERICA, LLC

-- Insert selector shaft -1- into lower mounting -2- and into shift forks -3-.

NOTE:

To improve clarity, the cap is removed.

-- Now press selector shaft -1- against lock sleeve -2- direction of -arrow- and guide downward with shift finger -3- through shift forks until stop.

Fig 9: Identifying Selector Shaft Pressed Against Lock Sleeve And Guided Downward With Shift Finger

Courtesy of AUDI OF AMERICA, LLC

Shift cover -4- must stand parallel to bolting surface on transmission housing during this.
Selector shaft must be able to be moved easily in selector motion (up- and downward).

NOTE:

If shift cover stands at an angle to bolting surface, selector shaft is not inserted in lower bearing.

-- Tighten the bolts -3- for the shift cover -4-.

Fig 10: Identifying Back-Up Lights Switch, Mounting Screw, Bolts & Selector Shaft

Courtesy of AUDI OF AMERICA, LLC

-- Install lock bolt -2-, lock elbow -arrow- must not be installed when doing so.

-- Install back-up light switch -F4- -1-.

-- Install the flange shaft with spring, the thrust washer and tapered ring.

Fig 11: Identifying Installation Of Flange Shaft

Courtesy of AUDI OF AMERICA, LLC

-- Drive input shaft seal in flush.

Fig 12: Driving In Input Shaft Oil Seal Flush

Courtesy of AUDI OF AMERICA, LLC

-- Install the clutch slave cylinder with release bearing. Refer to SLAVE CYLINDER WITH RELEASE BEARING .

-- Shift through all gears.

-- Drive the cap into the transmission housing as far as the stop.

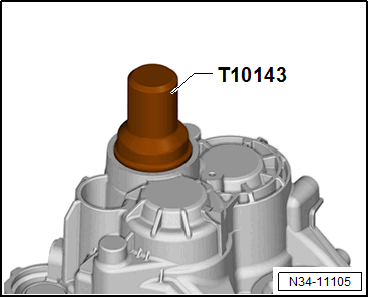

Fig 13: Identifying Tool Assembly To Install Metal Cap On Transmission Housing

Courtesy of AUDI OF AMERICA, LLC

-- Secure the cap with the circlip -A-.

Fig 14: Identifying Transmission Housing Without Sealing Cap Circlip

Courtesy of AUDI OF AMERICA, LLC

Install bevel box in manual transmission as follows:

CAUTION:

Risk of damaging sealing ring between transmission and bevel box.

Place bevel box on transmission together with right flange shaft while turning shaft.

-- With manual transmission, lubricate differential splines with grease for clutch disc shaft splines G 000 100.

-- Slide on bevel box completely on manual transmission, while doing this, join splines of input shaft/bevel box centrally with differential.

-- Bring right drive axle splines and differential bevel gear also into alignment, rotate flanged shaft if necessary.

-- With proper tooth position and central guiding, bevel box slips up to stop against manual transmission.

NOTE:

Do not pull bevel box with mounting bolts against manual transmission, otherwise bevel box is canted and mounting eyelets can break off.

-- Tighten 4 bevel box connecting bolts -arrows- (only 3 shown in illustration) at manual transmission. Tightening specifications -10- FLANGE SHAFT AND SEALS ON BEVEL BOX ASSEMBLY OVERVIEW => Bolt .

Fig 15: Identifying Removal/Installation Right Flange Shaft Countersunk Bolt Using Socket And Key T10107

Courtesy of AUDI OF AMERICA, LLC

-- Install right flange shaft. Refer to FLANGE SHAFT AND SEALS ON BEVEL BOX ASSEMBLY OVERVIEW .
