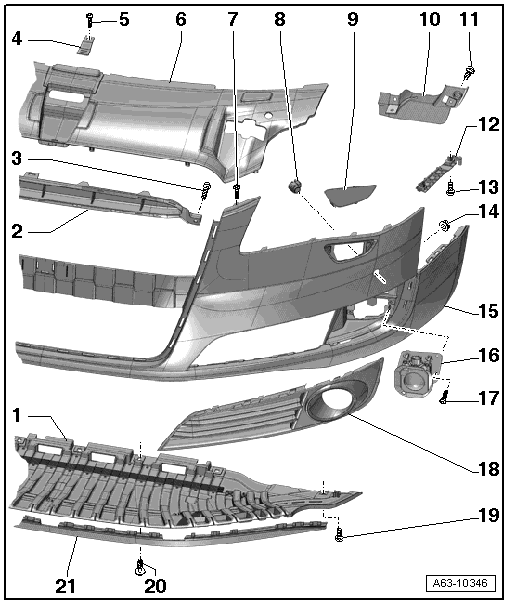

Overview - Bumper Cover, Version 1
- Bumper Cover End Plate
- Overview, refer to OVERVIEW - BUMPER COVER, END PANEL/LOCK CARRIER COVER .
- Reinforcement Brace
- Bolt
- 3 Nm
- Bracket
- For connecting the bumper cover/lock carrier
- Bolt
- 3 Nm
- Lock Carrier Cover
- Overview, refer to OVERVIEW - BUMPER COVER, END PANEL/LOCK CARRIER COVER .
- Bolt
- 3 Nm
- Quantity: 2
- Front Parking Aid Sensor
- Removing and Installing, refer to Parking Aid .
- Spray Nozzle Cover
- For the headlamp washer system
- Removing and installing, refer to HEADLAMP WASHER SYSTEM SPRAY NOZZLE COVER, REMOVING AND INSTALLING .
- Wheel Spoiler
Overview, refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
- Bolt
- Tightening specification, refer to item -18- OVERVIEW - FRONT WHEEL HOUSING LINER => List Item:Bolt .
- Mount
- For the bumper cover
- Removing and installing, refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 2
- Nut
- 4 Nm
- Quantity: 2
- Bumper Cover
- Removing and installing, refer to BUMPER COVER, REMOVING AND INSTALLING .
- Distance Regulation Control Module
- Removing and Installing, refer toADAPTIVE CRUISE CONTROL .
- Bolt
- Tightening specification, refer to ADAPTIVE CRUISE CONTROL .
- Air Intake Grille
- Removing and installing, refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, VERSION 1 .
- Bolt
- Tightening specification, refer to OVERVIEW - BUMPER COVER, END PANEL/LOCK CARRIER COVER .
- Quick Release
- Quantity: 2
- Spoiler Lip
- Removing and installing, refer to SPOILER LIP, REMOVING AND INSTALLING .
