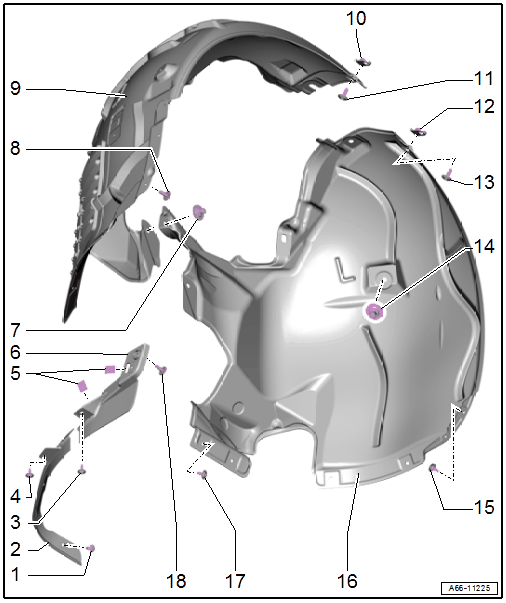

Overview - Front Wheel Housing Liner
- Bolt
- 2.5 Nm
- Inner Front Wheel Spoiler
- Removing and installing, refer to FRONT INNER WHEEL SPOILER, REMOVING AND INSTALLING .
- Quick Release
- Bolt
- 2.5 Nm
- Metal Nut
- For the quick release
- Front Outer Wheel Spoiler
- There are different versions .
- Removing and installing, refer to OUTER FRONT OUTER WHEEL SPOILER, REMOVING AND INSTALLING .
- Nut
- 2.5 Nm
- Quantity: 2
- Bolt
- 2.5 Nm
- Quantity: 6
- Front Section of Front Wheel Housing Liner
- Removing and installing, refer to FRONT WHEEL HOUSING LINER FRONT SECTION, REMOVING AND INSTALLING .
- Bracket
- For the wheel housing liner to the fender
- Bolt
- 2.5 Nm
- Bracket
- For the wheel housing liner to the fender
- Bolt
- 2.5 Nm
- Nut
- 2.5 Nm
- Quantity: 4
- Bolt
- 2.5 Nm
- Quantity: 2
- Rear section of front wheel housing liner
- Removing and installing, refer to FRONT WHEEL HOUSING LINER REAR SECTION, REMOVING AND INSTALLING .
- Quick Release
- Quantity: 6
- Bolt
- 2 Nm
