Overview - Bumper Cover, End Panel/Lock Carrier Cover

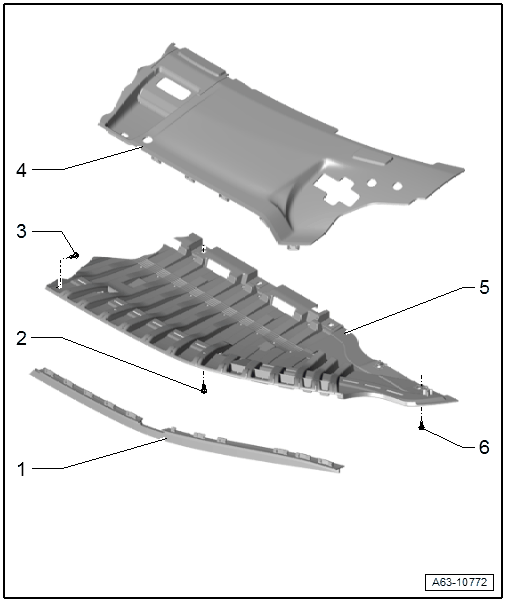

Fig 1: Overview - Bumper Cover, End Panel/Lock Carrier Cover

Courtesy of AUDI OF AMERICA, LLC

1. Spoiler Lip
   • Vehicle versions
   • Removing and installing, refer to SPOILER LIP, REMOVING AND INSTALLING .
2. Quick Release
   • Quantity: 2
3. Bolt
   • 3 Nm
   • Quantity: 6
4. Lock Carrier Cover
   • Removing and installing, refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
5. Bumper Cover End Plate
   • Removing and Installing
     • Audi A8, refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING, AUDI A8 .
     • Audi S8, refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING, AUDI S8 .
6. Bolt
   • 3 Nm
