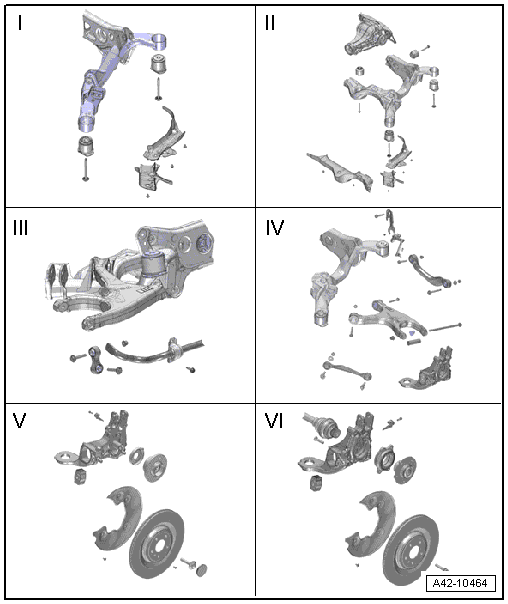

Fig 1: Rear Axle Exploded View
GWWA42-10464Courtesy of AUDI OF AMERICA, LLC
  1. I -Refer to OVERVIEW - SUBFRAME, VEHICLES WITH FWD
  2. II -Refer to OVERVIEW - SUBFRAME, VEHICLES WITH AWD
  3. III -Refer to OVERVIEW - STABILIZER BAR
  4. IV -Refer to OVERVIEW - TRANSVERSE LINK
  5. V -Refer to OVERVIEW - WHEEL BEARING, FWD VEHICLES EXCEPT E-TRON
  6. VI -Refer to OVERVIEW - WHEEL BEARING HOUSING, AWD VEHICLES AND E-TRON
