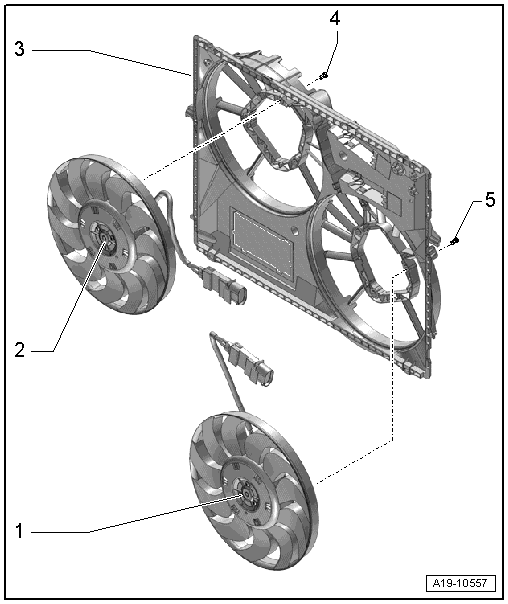

Fan Shroud And Coolant Fan Overview
WARNING: This page is about a different variant/trim than selected.
- Coolant Fan -V7- with Coolant Fan Control Module -J293-
- Removing and Installing. Refer to COOLANT FANS -V7- / -V177-, REMOVING AND INSTALLING .
- Coolant Fan 2 -V177- with Coolant Fan Control Module 2 -J671-
- Removing and Installing. Refer to COOLANT FANS -V7- / -V177-, REMOVING AND INSTALLING .
- Fan Shroud
- Removing and Installing, Vehicles through 05/2010. Refer to FAN SHROUD, THROUGH 05/2010, REMOVING AND INSTALLING .
- Removing and Installing, Vehicles from 06/2010. Refer to FAN SHROUD, VEHICLES FROM 06/2010, REMOVING AND INSTALLING .
- Bolt
- 10 Nm
- Bolt
- 10 Nm
