Coolant Fans -V7- / -V177-, Removing And Installing
WARNING: This page is about a different variant/trim than selected.
Removal
-- Remove fan shroud. Refer to FAN SHROUD, THROUGH 05/2010, REMOVING AND INSTALLING .
-- Free up the electric wires.

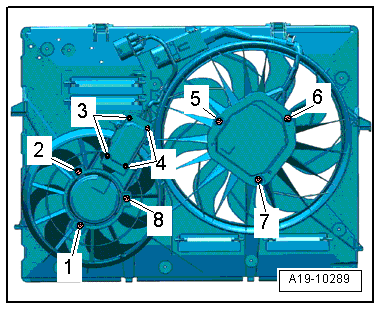

-- Remove the bolts -1, 2, 3, 4 and 8- and then remove the Coolant Fan 2 -V177- and Coolant Fan Control Module 2 -J671-.
-- Remove the bolts -5, 6, 7- and then remove the Radiator Fan -V7- and the Coolant Fan Control Module -J293-.
Installation
Install in reverse order of removal. Note the following:
- Tightening specifications. Refer to FAN SHROUD AND COOLANT FAN OVERVIEW .
-- Install fan shroud. Refer to FAN SHROUD, THROUGH 05/2010, REMOVING AND INSTALLING .
