Cooling system version for countries with cold and hot climates without auxiliary heater - normal wheelbase

WARNING: This page is about a different variant/trim than selected.

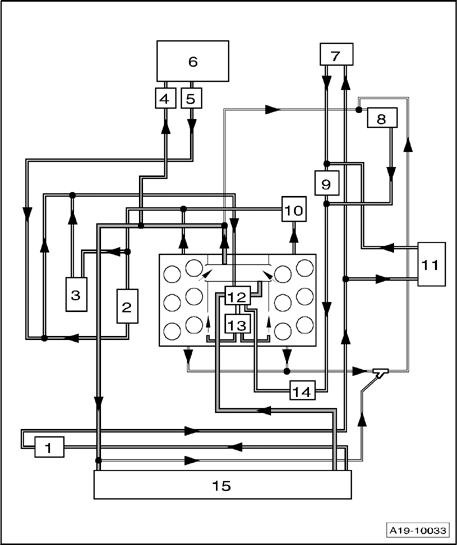

Fig 1: Cooling System, Component Overview - Cooling System Version For Countries With Cold And Hot Climates Without Auxiliary Heater - Normal Wheelbase

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Auxiliary cooler

Removing and installing → Auxiliary cooler, removing and installing
Replace coolant after replacing auxiliary cooler

2 - Engine oil cooler

Removing and installing → Engine Oil Cooler, Removing and Installing
Replace coolant after replacing engine oil cooler

3 - Generator

4 - Bleeder screw

5 - Bleeder screw

6 - Heater core

Replace coolant after replacing heater core

7 - ATF cooler

Replace coolant after replacing ATF cooler

8 - Coolant expansion tank

With pressure relief valve in cap, checking → Checking pressure relief valve in cap

9 - Coolant thermostat

For ATF cooler and gear oil cooler for transfer gear

10 - Engine Coolant Temperature (ECT) sensor G62

11 - Gear oil cooler for transfer gear

Replace coolant after replacing gear oil cooler

12 - Coolant thermostat

Checking → Coolant thermostat, checking
Removing and installing → Coolant thermostat, removing and installing

13 - Coolant pump

Removing and installing → Coolant Pump, Removing and Installing

14 - After-run coolant pump V51

Removing and installing → After-Run Coolant Pump, Removing and Installing

15 - Radiator

Removing and installing → Radiator, removing and installing
Replace coolant after replacing radiator
