Coolant thermostat, checking

WARNING: This page is about a different variant/trim than selected.

Special tools, testers and auxiliary items required

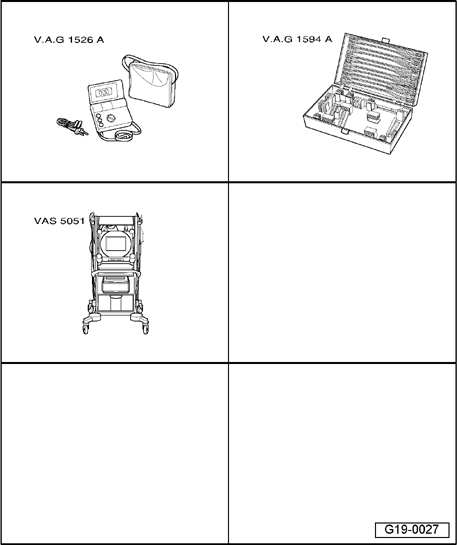

Fig 1: Identifying Special Tools - Coolant Thermostat, Checking

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Portable multimeter V.A.G 1526 A
Connector test set V.A.G 1594 A
Vehicle Diagnostic, Testing and Information System VAS 5051 A with diagnostic cable VAS 5051/5A

Conditions

Checking internal resistance of heating element

NOTE:

The Map controlled engine cooling thermostat F265 and wiring connections are monitored by the Engine Control Module (ECM).

Fig 2: Connecting Data Link Connector (DLC)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Vehicle Diagnostic, Testing and Information System VAS 5051 A with diagnostic cable VAS 5051/5A connected, On Board Diagnostic (OBD) and vehicle system "01 Engine electronics" selected. Switch ignition on.

If a fault related to Map controlled engine cooling thermostat F265 is displayed:

Fig 3: Pulling Engine Cover At Rear And Middle Upward And Off & Pulling Engine Cover Forward And Off Of Intake Manifold

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 4: Intake Manifold Lower Section Electrical Harness Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect electrical 2-pin connector - arrow - at Map controlled engine cooling thermostat F265.

NOTE:

To improve clarity, the electrical connector is shown with the intake manifold removed.

If specification is not obtained:

Replace Map controlled engine cooling thermostat F265 → Coolant thermostat, removing and installing .

If specification is obtained:
