Part IV

WARNING: This page is about a different variant/trim than selected.

Part I, refer to PART I

Part II, refer to PART II

Part III, refer to PART III

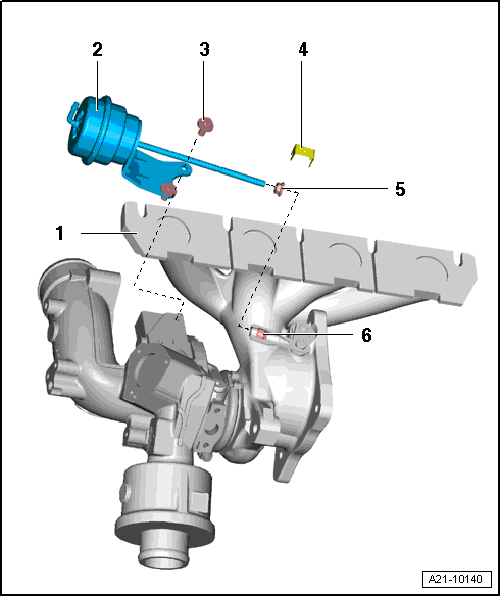

Fig 1: Turbocharger Assembly Overview (Engine Codes AXX, BPY, BWA) -- Part IV

Courtesy of AUDI OF AMERICA, LLC

Turbocharger
- Can only be replaced with exhaust manifold and pressure unit.
- Removing and installing, refer to TURBOCHARGER
Turbocharger Vacuum Diaphragm
- Checking, refer to TURBOCHARGER VACUUM DIAPHRAGM, CHECKING
- Removing and installing, refer to TURBOCHARGER VACUUM DIAPHRAGM
- Adjusting, refer to TURBOCHARGER VACUUM DIAPHRAGM, ADJUSTING
Bolt
- 10 Nm
Securing Plate
Nut
- 9 Nm
- Secure with sealing wax
- Sealing wax.
Knurled Nut

Additional Tightening Specifications

Component		Nm
Right charge air pipe to oil pan		10
Rear charge air tube to bracket		10
Oil supply line to oil filter bracket		25
