Second Row, 3 Passenger Overview

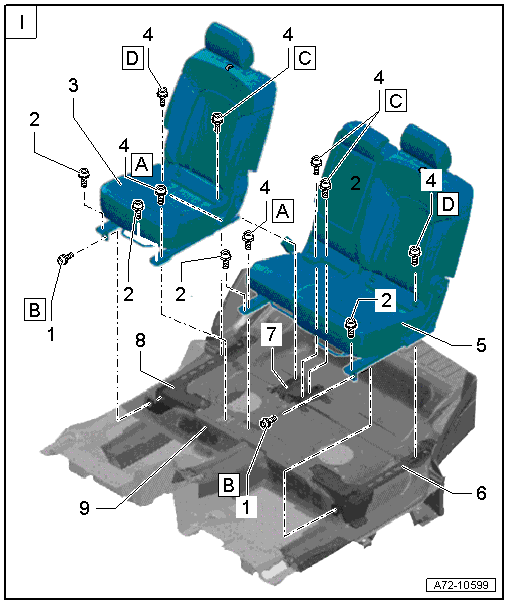

I - Threaded Connections

1. Screw, Self-Locking
   • Quantity: 2
   • Always replace if removed.
   • Clean nut threads before installing new screws.
   • Pay attention to the assembly sequence and tightening torque. Refer to SECOND ROW, 3 PASSENGER OVERVIEW .
2. Bolt
   • 20 Nm
   • Quantity: 4
   • As stop for the seat forward/back adjustment.
   • Only for 5-seater with manual seat forward/back adjustment.
3. Individual Seat
   • Removing and installing is similar to removing and installing the seat bench. Refer to -Item 5-  SECOND ROW, 3 PASSENGER OVERVIEW.
   • Removing and Installing. Refer to BENCH SEAT, REMOVING AND INSTALLING .
   • Seat Rail Assembly Overview. Refer to SEAT RAIL OVERVIEW .
   • Seat Rail, Removing and Installing. Refer to SEAT RAIL, REMOVING AND INSTALLING .
4. Screw, Self-Locking
   • Quantity: 7
   • Always replace if removed.
   • Clean nut threads before installing new screws.
   • Pay attention to the assembly sequence and tightening torque. Refer to SECOND ROW, 3 PASSENGER OVERVIEW .
5. Bench Seat
   • Removing and Installing. Refer to BENCH SEAT, REMOVING AND INSTALLING .
   • Center seat backrest, construction. Refer to CENTER SEAT BACKREST OVERVIEW .
   • Seat Rail Assembly Overview. Refer to SEAT RAIL OVERVIEW .
   • Seat Rail, Removing and Installing. Refer to SEAT RAIL, REMOVING AND INSTALLING .
6. Left Console
7. Mounting Piece
   • One piece
8. Right Console
9. Carpet

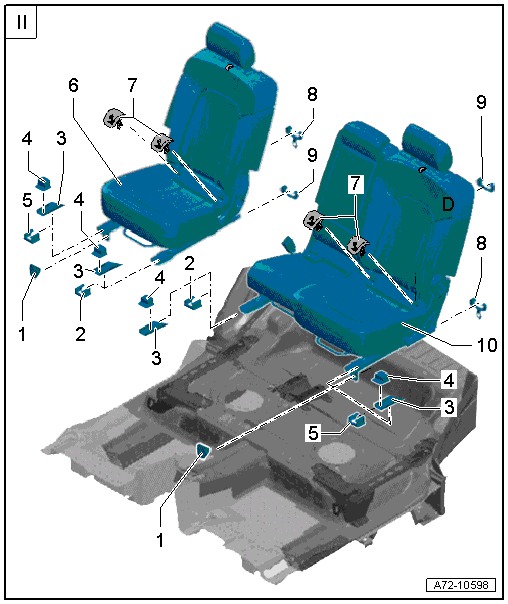

II - Trim and Covers

1. Seat Rail Cover
   • Clipped into the inner part (floor covering component).
   • Removing and Installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING .
2. Front Seat Rail Cap
   • Quantity: 2
   • For 5-seater longitudinally adjustable, 6-seater, and 7-seater
   • Placed on seat rail. Refer to -Item 3-  SECOND ROW, 3 PASSENGER OVERVIEW.
   • Removing and Installing. Refer to FRONT SEAT RAIL CAP, REMOVING AND INSTALLING .
3. Seat Rail
4. Seat Rail Cover
   • Quantity: 4
   • For 5-passenger basis (without seat forward/back adjustment).
   • Placed on seat rail. Refer to -Item 3-  SECOND ROW, 3 PASSENGER OVERVIEW.
5. Front Seat Rail Cap
   • Quantity: 2
   • For 5-passenger longitudinally adjustable, 6-passenger, and 7-passenger.
   • Placed on seat rail.
   • Removing and Installing. Refer to FRONT SEAT RAIL CAP, REMOVING AND INSTALLING .
6. Individual Seat
7. LATCH Caps
   • Clipped onto seat frame bracket.
   • Removing and Installing. Refer to LATCH CAP (2ND AND 3RD ROW SEATS), REMOVING AND INSTALLING .
8. Rear Out Seat Rail Cap
   • Quantity: 2
   • For 5-passenger longitudinally adjustable, 6-passenger, and 7-passenger.
   • Removing and Installing. Refer to REAR SEAT RAIL CAP, REMOVING AND INSTALLING .
9. Rear Inner Seat Rail Cap
   • Quantity: 2
   • For 5-passenger longitudinally adjustable, 6-passenger, and 7-passenger.
   • Removing and Installing. Refer to REAR SEAT RAIL CAP, REMOVING AND INSTALLING .
10. Bench Seat

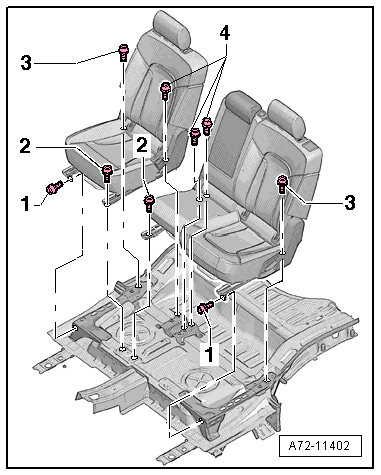

Assembly Sequence and Tightening Torque:

-- Insert screws -2- and tighten to "50 Nm".

-- Insert screws -1- "but do not tighten".

-- Insert screws -4- and tighten to "50 Nm".

-- Insert screws -3- and tighten to "50 Nm".

-- Slide the adjustable seat all the way to the front in order to tighten the bolts -1- to "50 Nm".
