Seat Rail Overview

NOTE:

The seat rails on a two-thirds seat bench with entry assist are shown in the illustration. The seat rails for a single seat in the second seat row without entry assist are identical.

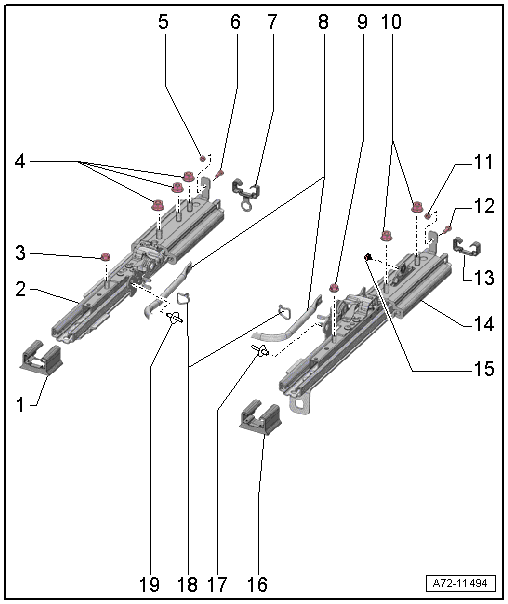

Fig 1: Identifying Seat Rail Assembly Overview
GWWA72-11494Courtesy of AUDI OF AMERICA, LLC
  1. Front Seat Rail Cap
  2. Inner Seat Rail
  3. Nut
    • 24 Nm
  4. Nuts
    • 48 Nm
  5. Nut
    • 10 Nm
  6. Bolt
  7. Rear Seat Rail Cap
  8. Release Lever
  9. Nut
    • 24 Nm
  10. Nuts
    • 48 Nm
  11. Nut
    • 10 Nm
  12. Bolt
  13. Rear Seat Rail Cap
  14. Out Seat Rail
  15. Bolt
    • 7 Nm
  16. Front Seat Rail Cap
  17. Blind Rivet
  18. Cable Tie
  19. Blind Rivet
