Center Seat Backrest Overview

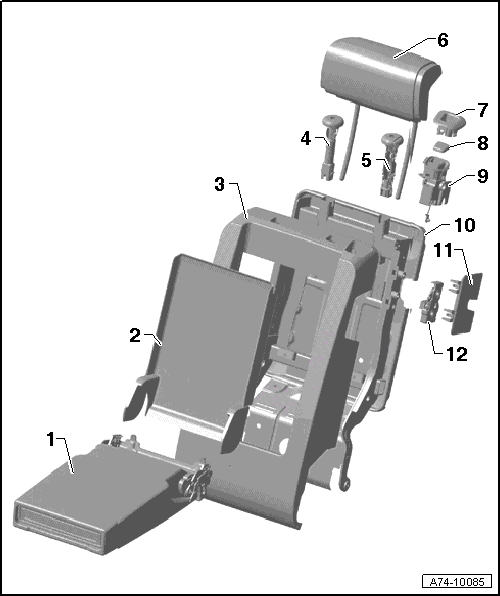

Fig 1: Identifying Center Seat Backrest, Construction

Courtesy of AUDI OF AMERICA, LLC

Center Armrest
- 10 Nm
- 2 screws
- Removing and Installing. Refer to CENTER ARMREST, REMOVING AND INSTALLING .
- Cupholder, Removing and Installing. Refer to CUPHOLDER, REMOVING AND INSTALLING .
Rear Bulkhead
- Removing and Installing. Refer to CENTER ARMREST, REMOVING AND INSTALLING .
Cover and Upholstery
- Removing and Installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .
Headrest Guide
- Without release button.
- Removing and Installing. Refer to HEADREST GUIDES, REMOVING AND INSTALLING .
Headrest Guide
- With release button.
- Removing and Installing. Refer to HEADREST GUIDES, REMOVING AND INSTALLING .
Headrest
- Removing and Installing. Refer to OUTER HEADREST OVERVIEW .
Trim
- Center seat, folding.
- Removing and Installing. Refer to CENTER SEAT TRIM FOLD DOWN, REMOVING AND INSTALLING .
Cover
- Center seat folding button.
- Removing and Installing. Refer to RELEASE MECHANISM, REMOVING AND INSTALLING .
Release Mechanism
- 1.5 Nm
- 3 screws
- Removing and Installing. Refer to RELEASE MECHANISM, REMOVING AND INSTALLING .
Backrest Frame
- Center seat.
Trim
- Center seat lock.
- Removing and Installing. Refer to CENTER SEAT LOCK TRIM PANEL, REMOVING AND INSTALLING .
Lock
- 18 Nm
- Center seat
- 2 screws
- Removing and Installing. Refer to LOCK, REMOVING AND INSTALLING .
