Seat Forward/Back Adjustment Button -E418-, -E421-, -E424-, AND -E425- OVERVIEW

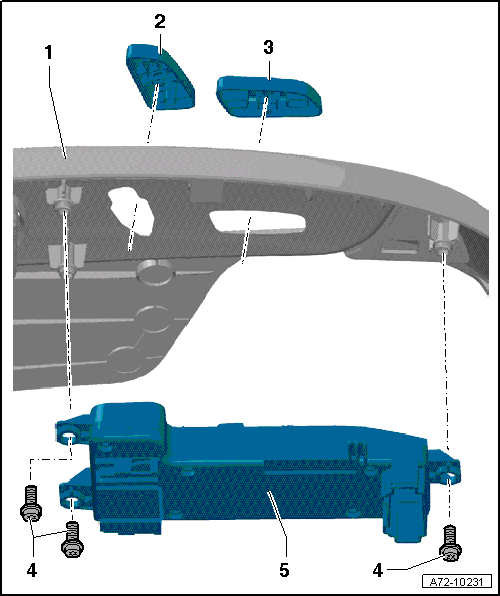

Fig 1: Identifying Fore And Aft, Inclination, Height And Backrest Adjustment Switch E418/E421/E424/E425

Courtesy of AUDI OF AMERICA, LLC

1. Trim
   • Removing and Installing. Refer to SILL AND TUNNEL SIDE TRIM PANELS OVERVIEW .
2. Backrest Adjustment Switch. Refer to SEAT AND BACKREST ADJUSTMENT SWITCH OVERVIEW .
   • Removing and Installing. Refer to BACKREST ADJUSTMENT SWITCH, REMOVING AND INSTALLING .
   • Clipped onto switch.
3. Seat Fore and Aft, Inclination and Height Adjustment Switch. Refer to SEAT AND BACKREST ADJUSTMENT SWITCH OVERVIEW .
   • Removing and Installing. Refer to SEAT ADJUSTMENT SWITCH, REMOVING AND INSTALLING .
4. Bolt
   • 1.5 Nm
5. Switch
   • Seat Forward/Back Adjustment Button -E418-
   • Angle Adjustment Button -E421-
   • Seat Height Adjustment Button -E424-
   • Backrest Adjustment Button -E425-
   • Removing and Installing. Refer to Seat Forward/Back Adjustment Button -E418-, -E421-, -E424-, AND -E425-, REMOVING AND INSTALLING .
