Seat And Backrest Adjustment Switch Overview

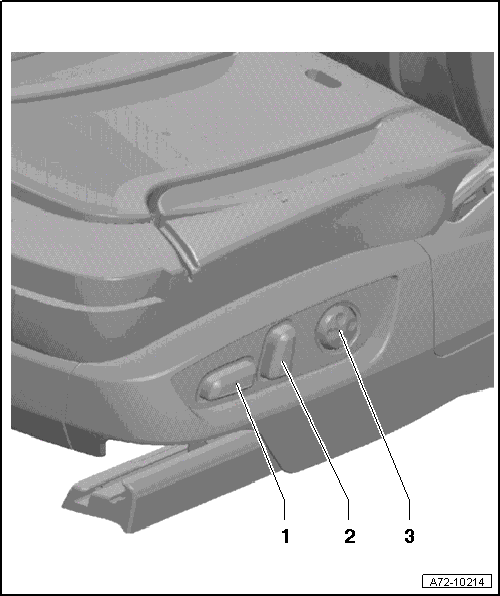

Fig 1: Identifying Seat And Backrest Adjustment Actuator - Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Switch
   • For seat inclination adjustment.
   • For seat forward/back adjustment.
   • For seat height adjustment.
   • Removing and Installing. Refer to SEAT ADJUSTMENT SWITCH, REMOVING AND INSTALLING .
2. Switch
   • For backrest adjustment.
   • Removing and Installing. Refer to BACKREST ADJUSTMENT SWITCH, REMOVING AND INSTALLING .
3. Switch
   • For Driver Seat Lumbar Support Adjustment Switch -E176-.
   • Cannot be removed, is a fixed component of Driver Seat Lumbar Support Adjustment Switch -E176-.
