Luggage Compartment Side Trim Panel, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the the luggage compartment floor.

-- Remove rear shelf -1-.

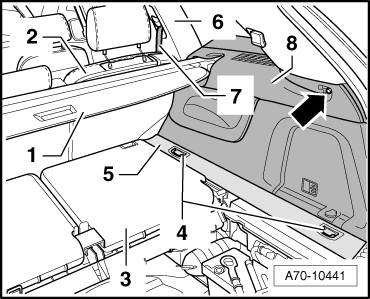

Fig 1: Removing Luggage Compartment Side Trim

Courtesy of AUDI OF AMERICA, LLC

-- Fold second row backrest -2- and, if present, 3rd row backrest -3- down.

-- Remove the rear cross panel trim. Refer to REAR CROSS PANEL TRIM OVERVIEW .

-- If present, remove tie-down eyes -4-. Refer to TIE-DOWN EYE WITH THE GAP COVER, REMOVING AND INSTALLING .

-- Remove gap cover -5-.

-- Remove C-pillar trim -6- from the body. Refer to C-PILLAR TRIM OVERVIEW .

NOTE:

The C-pillar trim can be left hanging on seat belt webbing -7-.

To remove the C-pillar trim, the wheel housing trim must be removed from body.

In order to remove trim, belt webbing must be guided out from seat belt through trim. That is not necessary when removing trim.

-- Unscrew the screw -arrow- and remove luggage compartment side trim -8- from the D-pillar.

-- If present, disconnect electrical connectors.
