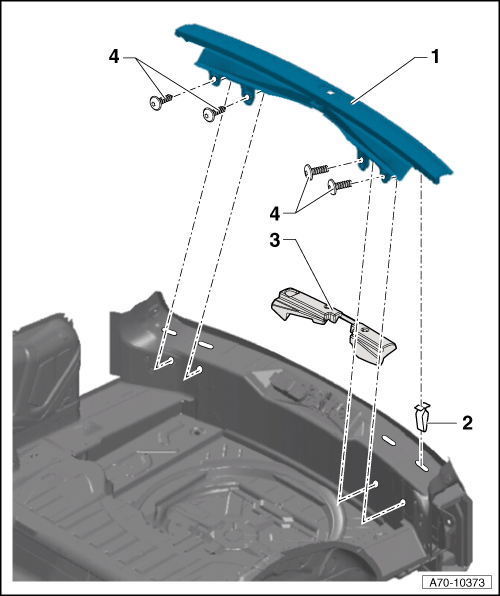

Rear Cross Panel Trim Overview
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Cross Panel Trim
- Removing and Installing. Refer to REAR CROSS PANEL TRIM, REMOVING AND INSTALLING .
- Clips
- Quantity: 4
- Replace if damaged.
- Insulation
- Install between the rear cross panel trim and striker pin.
- Bolt
- 3.5 Nm
