Instrument Panel Central Tube, Removing And Installing: Installing
When installing, position cable ties in same place.
-- Check balancing element adjustment nut -1- for ease of movement -arrows-.
-- Turn adjustment nut all the way down, but do not tighten.
-- Insert instrument panel central tube in body.

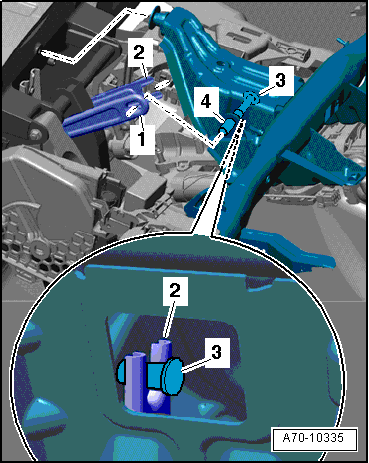

-- When inserting, pedal support braces -1- and -2- must be engaged in pins -3- and -4- on instrument panel central tube.
Pins -3- are located on inside of instrument panel central tube mount.
-- Secure brace -1- with a new lock washer.
-- Align the instrument panel central tube according to the marks applied during removal on the central tube angle brackets on the A-pillars.

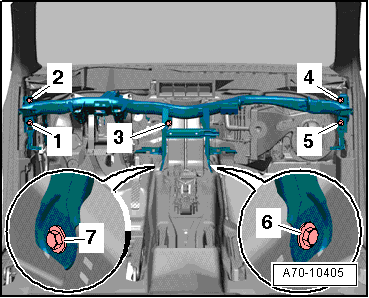

-- Tighten instrument panel central tube screws -1 to 7-.
Install in reverse order of removal. Note the following:
-- Install theFront Information Display Control Head Control Module -J523-. Refer to Front Information Display Control Head Control Module -J523- DRAWER, REMOVING AND INSTALLING .
-- Tighten steering column to instrument panel central tube. Refer to STEERING COLUMN OVERVIEW .
-- Install the Vehicle Electrical System Control Module -J519-. Refer to .
Check the Installation Location of the Instrument Panel Central Tube
-- Insert instrument panel to test.
-- Secure instrument panel at left and right to instrument panel central tube.
-- Close front doors.
-- Check whether gap dimension between instrument panel and left and right doors is even.
-- Check whether height of instrument panel aligns with molding in door trim.
If the adjustment is not correct:
-- Note side or height deviation.
-- Remove instrument panel again.
-- Loosen instrument panel central tube screws.
-- Adjust instrument panel central tube according to noted deviations.
-- Tighten instrument panel central tube screws -1 to 7-.
Installation Procedure
When tightening the screw, the adjusting element adjusting nut turns by itself against the plenum chamber bulkhead mounting point and secures the instrument panel central tube in the specified position.

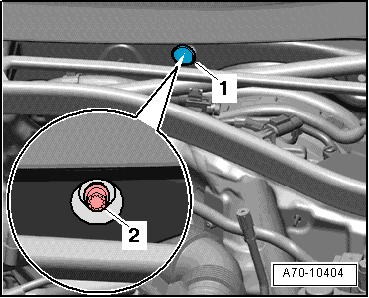

-- Tighten instrument panel central tube screw -2- through the front opening in the plenum chamber bulkhead.
-- When tightening, do not press on screw so that adjusting element adjusting nut can turn freely.
-- Seal the opening in the plenum chamber bulkhead with plug -1-.
Ignition must be on when connecting battery. If pyrotechnic components (for example, airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. Maintain personal safety when connecting the battery by staying out of airbag deployment areas, keeping a distance from belt tensioners/seat belts and ensuring no other people are in the vehicle interior at the moment when the battery is connected.
-- Switch on ignition.
-- Turn on the ignition and connect the battery ground cable. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367- FROM MY 09, REMOVING AND INSTALLING .
-- If the Airbag Indicator Lamp -K75- indicates a fault, check the DTC memory, erase it and check it again using the Vehicle Diagnostic Tester.
- Tightening specifications. Refer to INSTRUMENT PANEL CENTRAL TUBE OVERVIEW .
Additional Tightening Specifications
| Component | Nm | |
|---|---|---|
| Center instrument panel relay and fuse carrier retaining frame to instrument panel central tube | 3 | |
| Vehicle Electrical System Control Module -J519- bracket to instrument panel central tube | 3 | |
| Headlamp Range Control Module -J431- bracket to instrument panel central tube | 3, 5 | |
| Front Information Display Control Head Control Module -J523- bracket to instrument panel central tube | 9 | |
| Ground wires on instrument panel central pipe | 9 | |
