Overview - Lighter And 12V Outlet

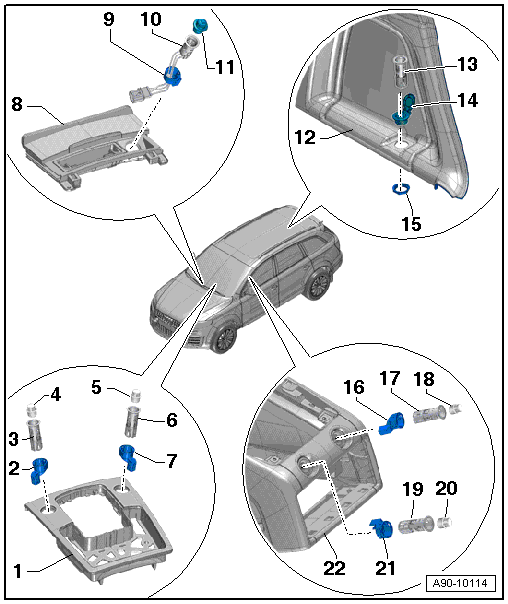

Fig 1: Identifying Lighter And 12V Outlet Overview

Courtesy of AUDI OF AMERICA, LLC

Mounting Frame
- For Multimedia System Control Head -E380-.
Power Socket 12 V -U5-
- Removing and Installing, refer to Power Socket 12 V -U5- AND 12V Socket 2 -U18-, REMOVING AND INSTALLING .
Socket Illumination Bulb -L42-
- For the Power Socket 12 V -U5-.
- Removing and Installing, refer to Socket Illumination Bulb -L42-, REMOVING AND INSTALLING .
Blind Cover
- For the Power Socket 12 V -U5-.
Blind Cover
- For the 12V Socket 2 -U18-.
12V Socket 2 -U18-
- Removing and Installing, refer to Power Socket 12 V -U5- AND 12V Socket 2 -U18-, REMOVING AND INSTALLING .
Socket Illumination Bulb -L42-
- For the 12V Socket 2 -U18-.
- Removing and Installing, refer to Socket Illumination Bulb -L42-, REMOVING AND INSTALLING .
Front Ashtray
- For the Cigarette Lighter -U1-.
Cigarette Lighter Illumination Bulb -L28-
- Can only be replaced together with the Cigarette Lighter -U1-.
- Removing and Installing, refer to Cigarette Lighter -U1-, REMOVING AND INSTALLING .
Cigarette Lighter -U1-
- Removing and Installing, refer to Cigarette Lighter -U1-, REMOVING AND INSTALLING .
Cigarette Lighter
Right Luggage Compartment Side Trim
12V Socket 5 -U26-
- Removing and Installing, refer to 12V Socket 5 -U26-, REMOVING AND INSTALLING .
- Replacing, refer to 12V Socket 5 -U26-, REPLACING .
Mount with Cover
- For the 12V Socket 5 -U26-.
Nut
- 2 Nm
Socket Illumination Bulb -L42-
- For the 12 V Socket 4 -U20-.
- Removing and Installing, refer to Socket Illumination Bulb -L42-, REMOVING AND INSTALLING .
12 V Socket 4 -U20-
- Removing and Installing, refer to 12V Socket 3 -U19- AND 12 V Socket 4 -U20-, REMOVING AND INSTALLING .
Blind Cover
- For the 12 V Socket 4 -U20-.
12V Socket 3 -U19-
- Removing and Installing, refer to 12V Socket 3 -U19- AND 12 V Socket 4 -U20-, REMOVING AND INSTALLING .
Blind Cover
- For the 12V Socket 3 -U19-.
Socket Illumination Bulb -L42-
- For the 12V Socket 3 -U19-.
- Removing and Installing, refer to Socket Illumination Bulb -L42-, REMOVING AND INSTALLING .
Rear Center Console
