12V Socket 5 -U26-, REMOVING AND INSTALLING

Removal

-- Turn off the ignition and remove the key.

-- Release luggage compartment right side trim cover -1- at place marked with -arrow A-.

-- Remove luggage compartment right side trim cover in direction of -arrow B-.

Fig 1: Identifying Release And Removal Of Luggage Compartment Right Side Trim Cover -1-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect electrical connector -3-.

-- Remove nut -1-.

-- Remove the 12V socket -2- from the luggage compartment right side trim cover.

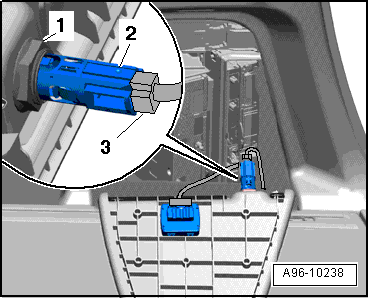

Fig 2: Identifying Electrical Connector -3-

Courtesy of AUDI OF AMERICA, LLC

Installation

• Tightening specifications, refer to OVERVIEW - LIGHTER AND 12V OUTLET .

Install in reverse order.
