Access/start authorization system - component overview

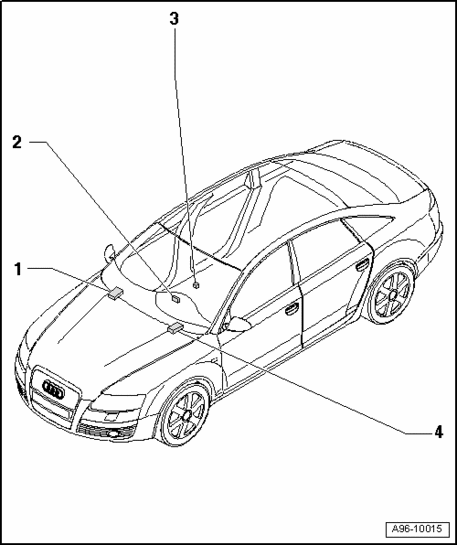

Fig 1: Access/Start Authorization System - Component Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Keyless Access Authorization Antenna Reader J723

• Component location: Behind glove compartment
• Removing and installing → Keyless Access Authorization Antenna Reader J723, removing and installing

2 - Access/Start Authorization Switch E415

• Component location: In instrument panel, drivers side
• Removing and installing → Access/Start Authorization Switch E415, removing and installing

3 - Access/Start Authorization Button E408

• Component location: In installation frame for Multimedia Control Head E380
• Removing and installing → Access/Start Authorization Button E408, removing and installing

4 - Access/Start Control Module J518

• With integrated Steering Column Lock Actuator N360
• Removing and installing → 48 - Steering Removal And Installation
