Access/Start Authorization Button E408, removing and installing
Removing
- On vehicles with automatic transmission, place selector lever in position "S".
CAUTION:
- Switch off all electrical components.
- Switch ignition off and remove ignition key.
- Reach from bottom into recesses into recesses at Climatronic Control Module J255 (control head).
- Pull Climatronic Control Module J255 (control head) out of mounting frame - arrows -.
NOTE:
- Electrical harness connectors do not need to be disconnected.
- Remove gap cover above ashtray - arrow -.
- Open front ashtray.
- Remove insert of front ashtray.

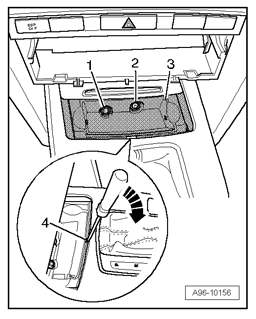

- Remove bolts - 1 - and - 2 -.
- Release ashtray - 3 - using a screwdriver - arrow -, attach screwdriver at opening - 4 - to do so.
- Remove housing of front ashtray.
- Disconnect electrical harness connector, if present.
- Reach through opening of ashtray and press out Access/Start Authorization Button E408 - 1 - - arrow -.
- Disconnect electrical harness connector.
Installing
Installation is performed in the reverse order of removal.
Tightening torque
| Component | Nm |
| Ashtray housing to front center console frame | 3 |
