Charge Air Cooler

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 Audi A3, 2012 Audi A3, 2011 Audi A3, 2010 Audi A3, and 2009 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine Bung Set VAS 6122

Removing

-- Remove the radiator. Refer to RADIATOR .

-- Remove front bumper cover. Refer to BUMPERS .

-- Disconnect the electrical connector -1- on the outside air temperature sensor -G17-.

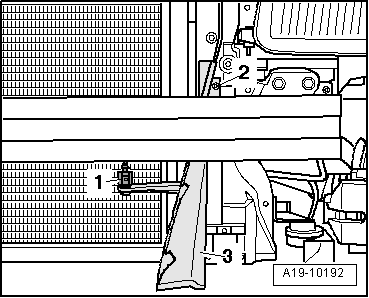

Fig 1: Identifying Outside Air Temperature Sensor G17 Electrical Connector, Bolts And Air Ducts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2- on the left and right charge air cooler air ducts.

-- Disengage the air ducts -3-. To do so, they must slide forward slightly.

-- Tilt the air ducts to the left side of the vehicle and remove them behind the bumper.

WARNING:

Risk of injury from refrigerant.

The air conditioning refrigerant circuit must not be opened.

CAUTION:

Risk of damaging coolant lines and hoses.

Do not stretch, kink or bend coolant lines and hoses.

-- Remove the bolt on the refrigerant line retaining clamp near the longitudinal member.

-- Remove the condenser bolts -2-.

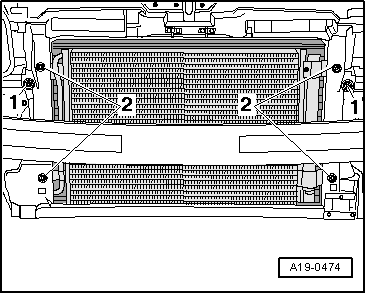

Fig 2: Identifying Condenser Mounting Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- on the charge air cooler.

-- Tilt the charge air cooler back slightly.

-- Remove the bolt on the refrigerant line bracket at the lower right of the charge air cooler.

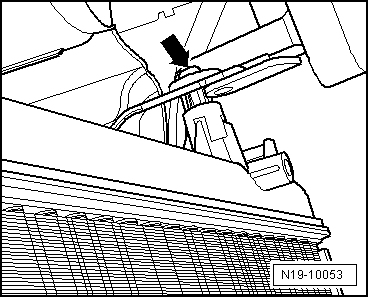

Fig 3: Locating Side Bolt From Condenser On Radiator

Courtesy of AUDI OF AMERICA, LLC

-- Tilt the condenser forward into the opening on the lock carrier.

-- Disengage the charge air cooler upward from the lock carrier and remove it downward diagonally.

Installing

Installation is in the reverse order of removal, note the following:

NOTE:

If there are small impressions on the fins. Refer to COOLERS, CONDENSERS AND CHARGE AIR COOLERS, INSTALLING .

NOTE:

Replace sealing ring.

Secure all hose connections with hose clamps appropriate for the model.

-- Install the radiator RADIATOR .

-- Install front bumper. Refer to Removal and Installation .

-- Air Guides, Installing with Connector. Refer to HOSE CONNECTIONS WITH CONNECTOR COUPLINGS, ASSEMBLING

-- Fill with coolant COOLING SYSTEM, DRAINING AND FILLING .
