Selector lever handle, shift mechanism cover, Tiptronic Switch F189 , assembly overview
WARNING: This page is about a different car, the 2010 Audi A8, 2009 Audi A8, 2008 Audi A8, 2007 Audi A8, and 2004 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Lubricate bearing areas and slide surfaces with polycarbamide grease G 052 142 A2 .

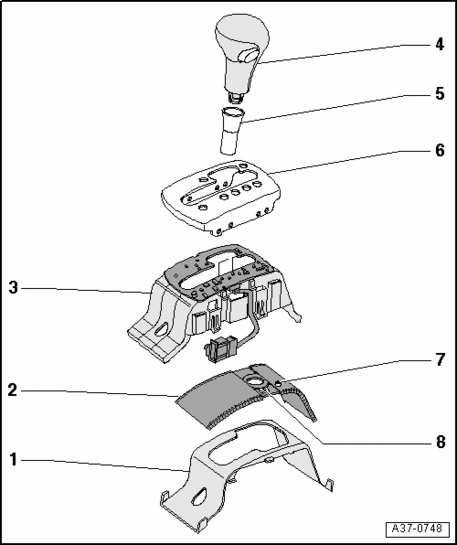

1 - Masking panel guide
- Pry out both halves of retaining tabs to disconnect → Tiptronic switch F189 , removing and installing
2 - Cover strip
- With solenoid for Tiptronic Switch F189 on transverse slide
- Removing and installing → Tiptronic switch F189 , removing and installing
3 - Frame with circuit board
- Can only be replaced as complete unit
- With integrated Tiptronic Switch F189
- With symbol illumination switches
- The circuit board can be checked in "Guided Fault Finding"
- Removing and installing → Tiptronic switch F189 , removing and installing
- Before replacing circuit board when DTC "18161" is entered in DTC memory, first check adjustment of selector lever cable → Selector lever cable, checking and adjusting
4 - Selector lever handle
- Removing and installing → Selector lever handle, removing and installing
5 - Selector lever sleeve
- Removing and installing → Selector lever handle, removing and installing
6 - Cover molding with symbol panel
- Removing and installing → Tiptronic switch F189 , removing and installing
7 - Symbol illumination switch solenoid
8 - Tiptronic recognition switch solenoid
