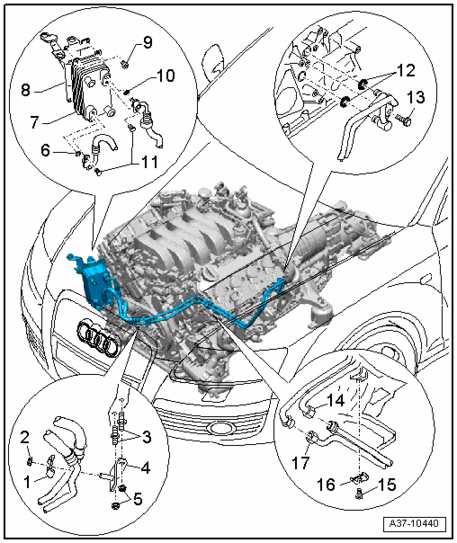

ATF lines and ATF cooler (vehicles with V8 4.2L FSI engine), assembly overview
WARNING: This page is about a different car, the 2010 Audi A8, 2009 Audi A8, 2008 Audi A8, 2007 Audi A8, and 2004 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Rules of cleanliness for working on automatic transmissions → Rules of cleanliness for working on automatic transmissions .
- Carefully clean all joints and adjacent areas before disconnecting.
- After replacing ATF lines or ATF cooler, check ATF level → ATF level, checking and topping off .
1 - ATF line retaining clip
2 - 5 Nm
3 - 9 Nm
4 - ATF line bracket
5 - 9 Nm
6 - O-Ring
- Replace
- Insert with ATF
7 - ATF cooler
- Removing and installing → ATF cooler (vehicles with V8 4.2L FSI engine), removing and installing
8 - Bracket for ATF cooler
- Removing and installing → ATF cooler bracket (vehicles with V8 4.2L FSI engine), removing and installing
9 - 9 Nm
10 - O-Ring
- Replace
- Insert with ATF
11 - 5 Nm
12 - O-Ring
- Replace
- Insert with ATF
13 - 21 Nm
- Completely insert ATF lines with new O-rings into transmission as far as stop and then tighten
14 - 29 Nm
15 - 5 Nm
16 - ATF line retaining clip
17 - 29 Nm
